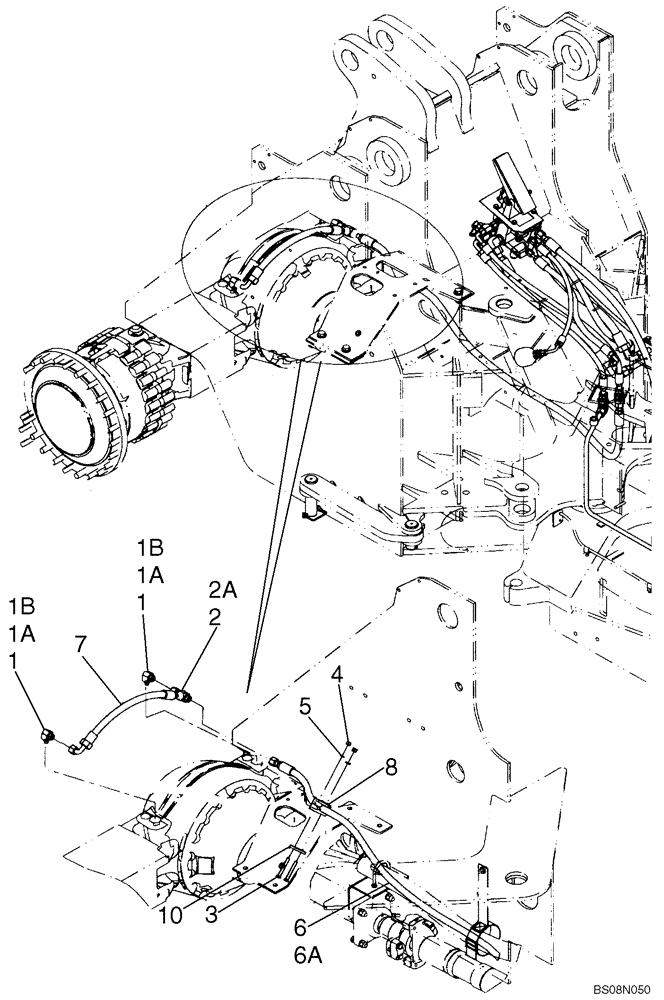

Запчасти Case 921E (07-05) - HYDRAULICS - BRAKE, MAIN - FRONT AXLE (07) - BRAKES

1

201-312

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 9/16" - 18 Male ORB

Incl. Ref. 1A, 1B

2шт.

1a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

1b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

2

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. Ref. 2A

1шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

3

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

87534154

HOSE ASSY.

Front Axle Brake, 2337 mm ( 92 in ); If Used

1шт.

6a

87475305

HOSE ASSY.

Front Axle Brake, 2857 mm ( 112 - 31/64 in); If Used

1шт.

7

87348987

HOSE ASSY.

586mm ( 23 in ); Front Axle Jump

1шт.

8

367489A1

BLOCK

1шт.

10

367658A1

PLATE

1шт.
