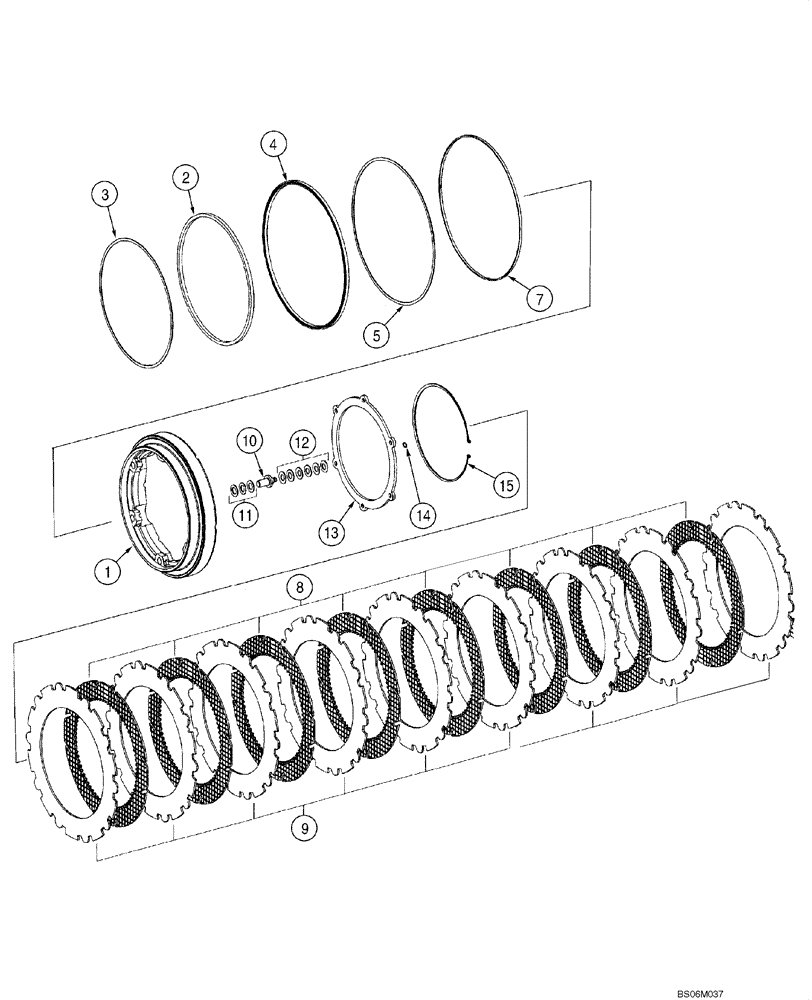

Запчасти Case 921E (07-03A) - AXLE, FRONT AND REAR - HUB, DISC BRAKES (07) - BRAKES

87357475

AXLE

Front; Incl. Parts on Figures 06-18A - 06-20, 07-03

1шт.

87474791R

REMAN-FRONT AXLE

1шт.

87474791C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87357478

AXLE

Rear; Incl. Refs. 1-16, Incl. Parts on Figures 06-20, 06-21A, 06-22, 07-03

1шт.

87474797R

REMAN-REAR AXLE

1шт.

87474797C

CORE-REAR AXLE

Return Number

1шт.

87588583

HUB

Front; Incl. Refs. 1-16, Also Includes Parts on Figure 07-03

1шт.

87588631

HUB

Rear; Incl. Refs. 1-16, Also Includes Parts on Figure 07-03

1шт.

1

8603165

PISTON

2шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

2шт.

3

384317A1

RING

2шт.

4

8605315

SEAL

2шт.

5

384319A1

RING

2шт.

7

384321A1

RING

2шт.

8

87521418

BRAKE DISC

Inner

16шт.

9

87521419

CLUTCH PLATE

Outer

18шт.

10

8603163

PIN

Brake Adjustment

12шт.

11

384325A1

RING

48шт.

12

384326A1

BELLEVILLE WASHER

84шт.

13

8603162

SHIM

2шт.

14

87408035

SNAP RING

12шт.

15

8603585

SNAP RING

2шт.

16

8603796

ROLL PIN,6mm OD x 20mm L

6 X 20; Not Illustrated

12шт.
