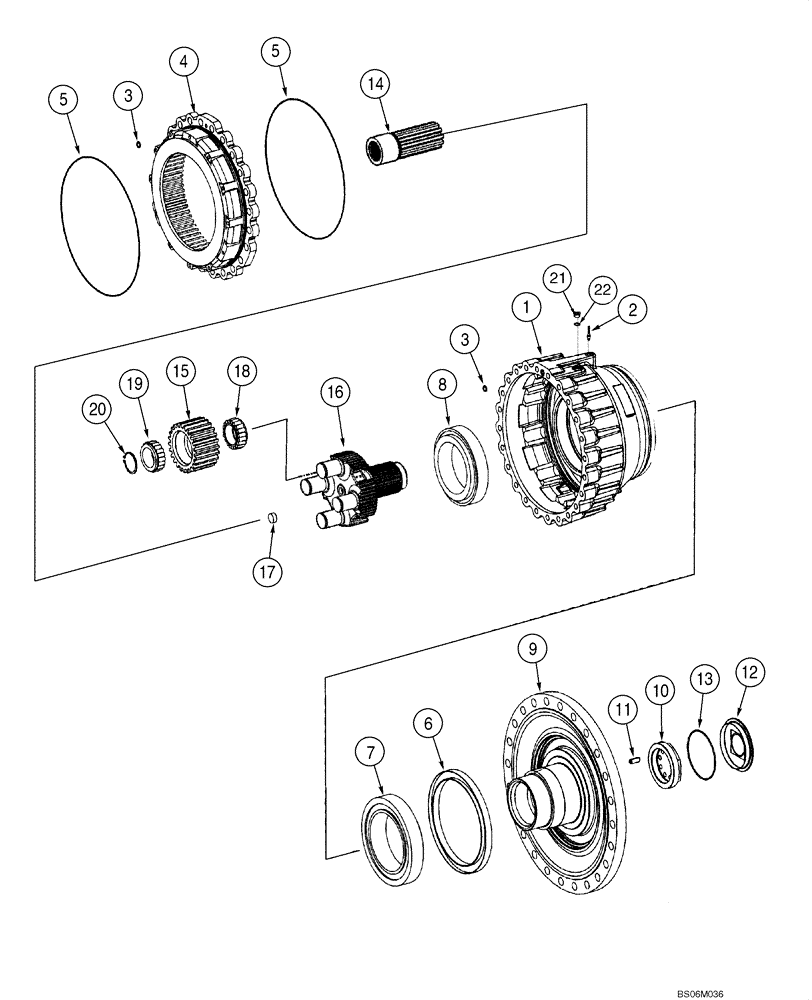

Запчасти Case 921E (07-03) - AXLE, FRONT AND REAR - HUB, PLANETARY (07) - BRAKES

87357475

AXLE

Front; Incl. Refs. 1-22, Includes Parts on Figures 06-18A - 06-20, 07-03A

1шт.

87474791R

REMAN-FRONT AXLE

1шт.

87474791C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87357478

AXLE

Rear; Incl. Refs. 1-22, Incl. Parts on Figures 06-20, 06-21A, 06-22, 07-03A

1шт.

87474797R

REMAN-REAR AXLE

1шт.

87474797C

CORE-REAR AXLE

Return Number

1шт.

87588583

HUB

Front; Incl. Refs. 1-22, Also Includes Parts on Figure 07-03A

1шт.

87588631

HUB

Rear; Incl. Refs. 1-22, Also Includes Parts on Figure 07-03A

1шт.

1

87588610

HOUSING

Brake

2шт.

2

NSS

NOT SOLD SEPARAT

PLUG: included with 87588610

2шт.

3

384294A1

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

4шт.

4

8605363

GEAR

Ring

2шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

4шт.

6

87588611

SEAL

Slide Ring

2шт.

7

384537A1

TAPERED BEARING,150mm ID x 225mm OD x 48mm W

2шт.

8

8603611

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

2шт.

9

87588612

FLANGE

Output

2шт.

10

384540A1

NUT

2шт.

11

384302A1

PIN

2шт.

12

384303A1

COVER

2шт.

13

331982A1

O-RING

2шт.

14

384542A1

SHAFT

14T

2шт.

15

384543A1

GEAR

27T

8шт.

16

87437910

CARRIER

2шт.

17

384309A1

BOLT

2шт.

18

84197599

ROLLER BEARING

8шт.

19

384547A1

ROLLER BEARING

8шт.

20

898183H1

RETAINER

8шт.

21

8603575

PLUG

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.
