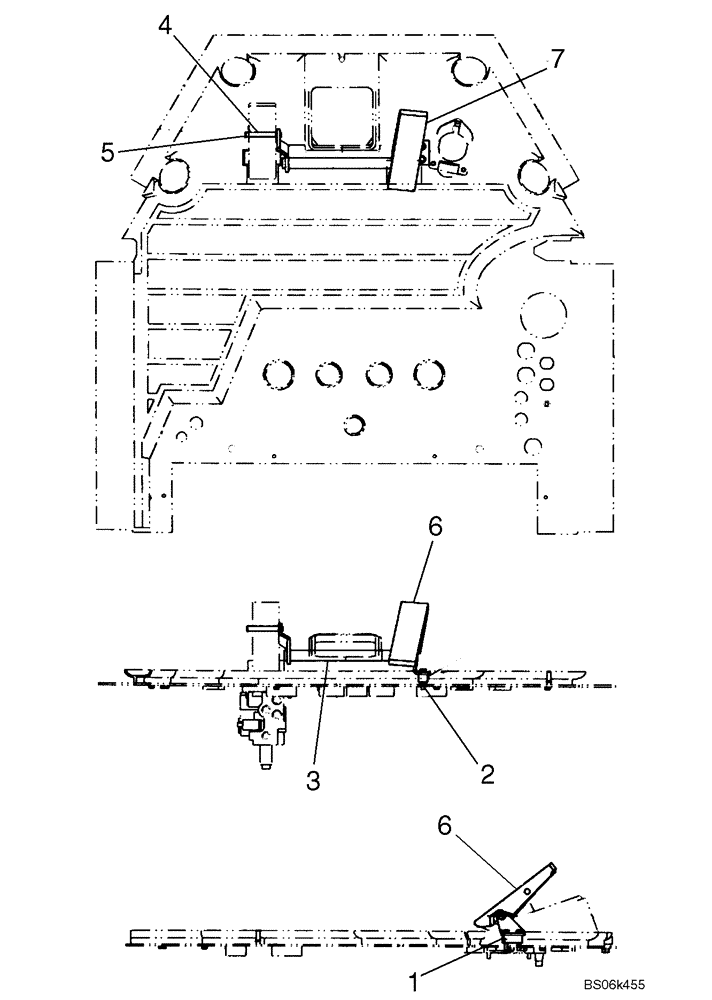

Запчасти Case 921E (07-01) - BRAKE PEDALS (07) - BRAKES

REF

INSTRUCTION

RIGHT HAND PEDAL

1шт.

1

87568400

MOUNTING PARTS

1шт.

2

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

3

87542219

PEDAL ASSY.

Tag-Along Pedal

1шт.

4

383868A1

PIN

1шт.

5

800-44012

SNAP RING,M12, Ext

2шт.

6

383869A2

RUBBER PEDAL PAD

1шт.
