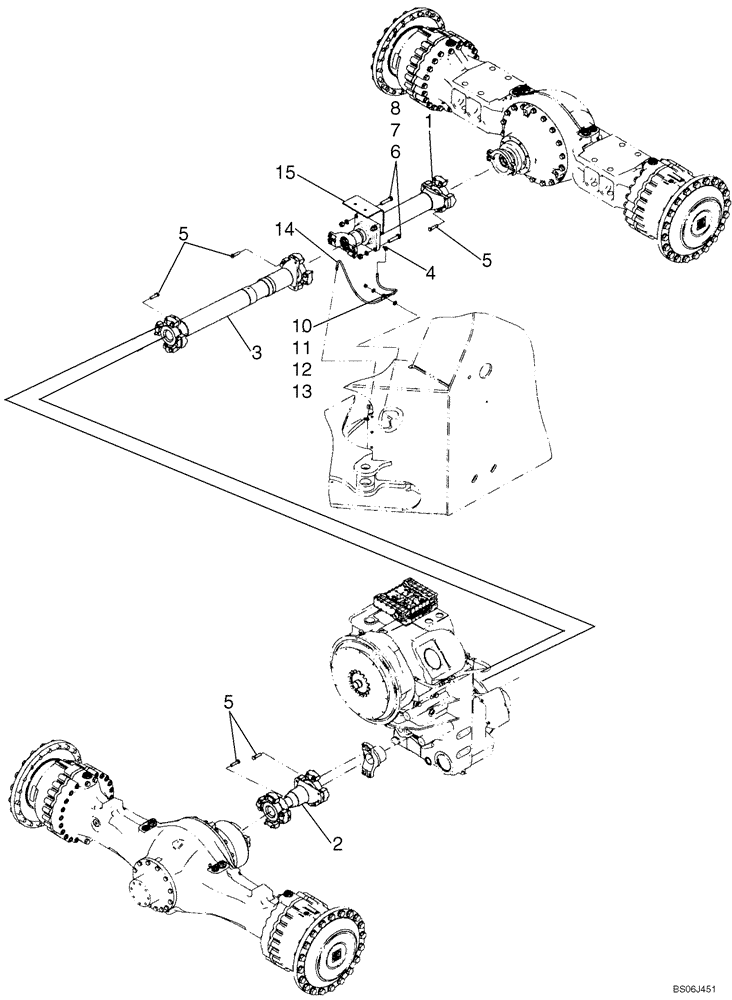

Запчасти Case 921E (06-24) - DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

87324330

DRIVE SHAFT

Front; See Figure 06-25

1шт.

2

87324215

DRIVE SHAFT

Rear; See Figure 06-27

1шт.

3

87325183

DRIVE SHAFT

Center; See Figure 06-26

1шт.

4

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

5

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

20шт.

6

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

10шт.

8

829-1416

NUT,M16, Cl 10

4шт.

9

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT; For Hose L54694, Ref. 14; Not Illustrated

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

11

49832

CLAMP

1шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in); Incl. 14A, 14B

1шт.

14a

219-20

LUBE NIPPLE,1/4" - 28

Not Illustrated

1шт.

14b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Not Illustrated

1шт.

15

87347789

BRACKET

Pilot Line

1шт.
