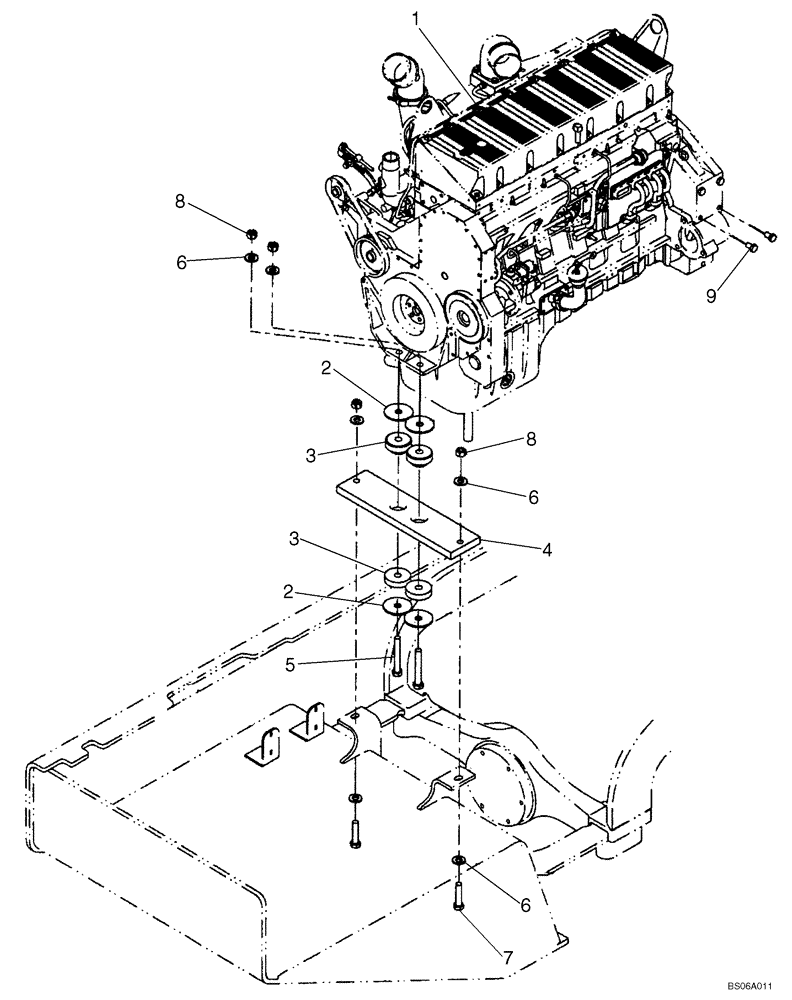

Запчасти Case 921E (02-01) - MOUNTING, ENGINE (02) - ENGINE

1

REF

INSTRUCTION

ENGINE QSM11-C; Production P/N 87331924; See Your Local Cummins Dealer For Parts And Service; For Engine Oil Filter Use Ref 1A, 87408494

1шт.

1a

84385571

ENGINE OIL FILTER

Not Illustrated

1шт.

2

L129148

WASHER

If Used

4шт.

2

379611A1

WASHER

If Used

4шт.

3

114360A1

HITCH DAMPER

Set Of Two

2шт.

4

L129153

LARGE PLATE

PLATE, LARGE

1шт.

5

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

2шт.

6

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

7

827-20085

BOLT,Hex, M20 x 2.5 x 85mm, Cl 10.9

2шт.

8

832-41320

NUT,M20 x 2.5, Cl 10

4шт.

9

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

4-8шт.
