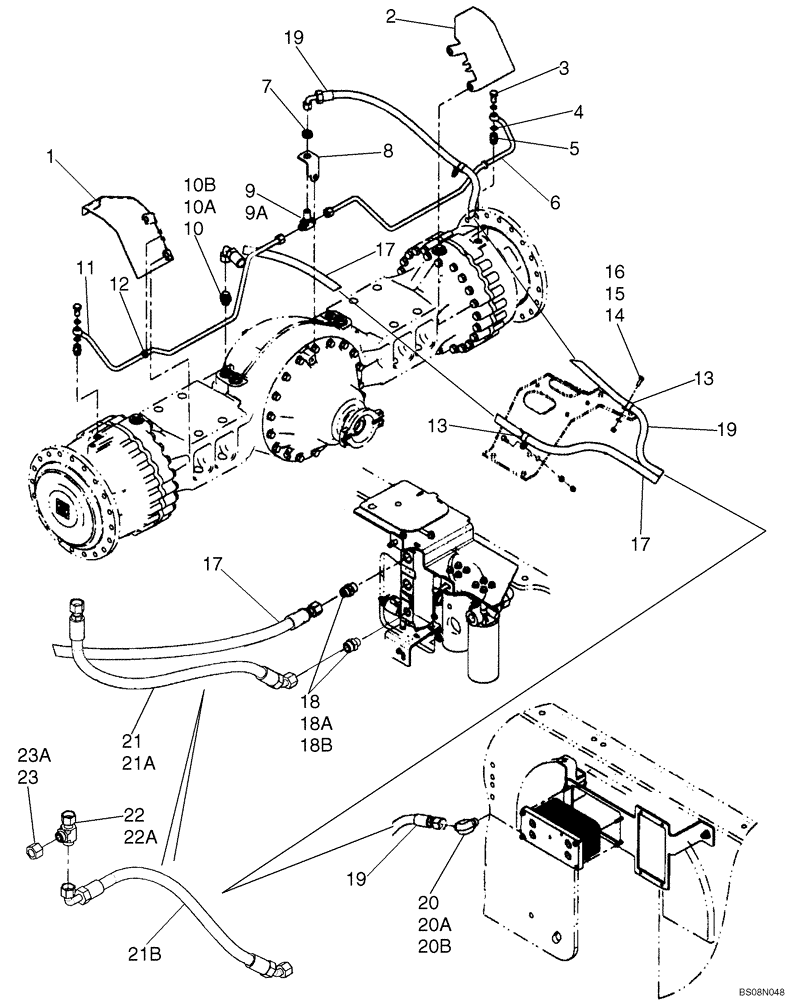

Запчасти Case 921E (06-23B) - HYDRAULICS - FRONT AXLE - COOLER (06) - POWER TRAIN

REF

INSTRUCTION

AXLE COOLER - FRONT

1шт.

1

87546222

BRACKET

1шт.

2

87546221

BRACKET

1шт.

3

5100984

BANJO BOLT,M18 x 1.5, 34mm L

2шт.

4

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

4шт.

5

87546208

ADAPTER

2шт.

6

87546199

HYD TUBE,0.625" OD

Front Axle RH; 1072 mm ( 42 - 1/4 in. )

1шт.

7

701-919

BHD LOCK NUT,1" - 14

1шт.

8

87546214

BRACKET

Mounting

1шт.

9

701-454

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. Ref. 9A

1шт.

9a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

10

87526208

CHECK VALVE

Incl. Refs. 10A, 10B

1шт.

10a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

1шт.

11

87546202

HYD TUBE,0.625" OD

Front Axle LH; 1113 mm ( 43 - 3/4 in. )

1шт.

12

248-2375

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

4шт.

13

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

17

87551334

HOSE,19.05mm ID x 2683mm L, SAE 100R1

Front Axle Suction; 2683 mm ( 105 - 2/3 in. )

1шт.

18

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 18A, 18B

2шт.

18a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

18b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

19

87529169

HOSE ASSY.

Front Cooler to Front Axle; 3543 mm (139 1/2 in.)

1шт.

20

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 20A, 20B

1шт.

20a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

20b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

21

87534450

HOSE

Supply Brake to Motor; 915 mm ( 36 in. ); If Used

1шт.

21a

87585535

HOSE ASSY.,19.05mm ID x 990mm L, SAE 100R17

Supply Brake to Motor; 990 mm ( 40 in. ); If Used

1шт.

21b

87475303

HOSE ASSY.,19.05mm ID x 832mm L, SAE 100R17

Supply Brake to Motor; 832 mm ( 32 - 3/4 in. ); If Used

1шт.

22

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. Refs. 22A; If Used

1шт.

22a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

701-907

CAP,1-3/16" - 12

Incl. Ref. 23A; If Used

1шт.

23a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
