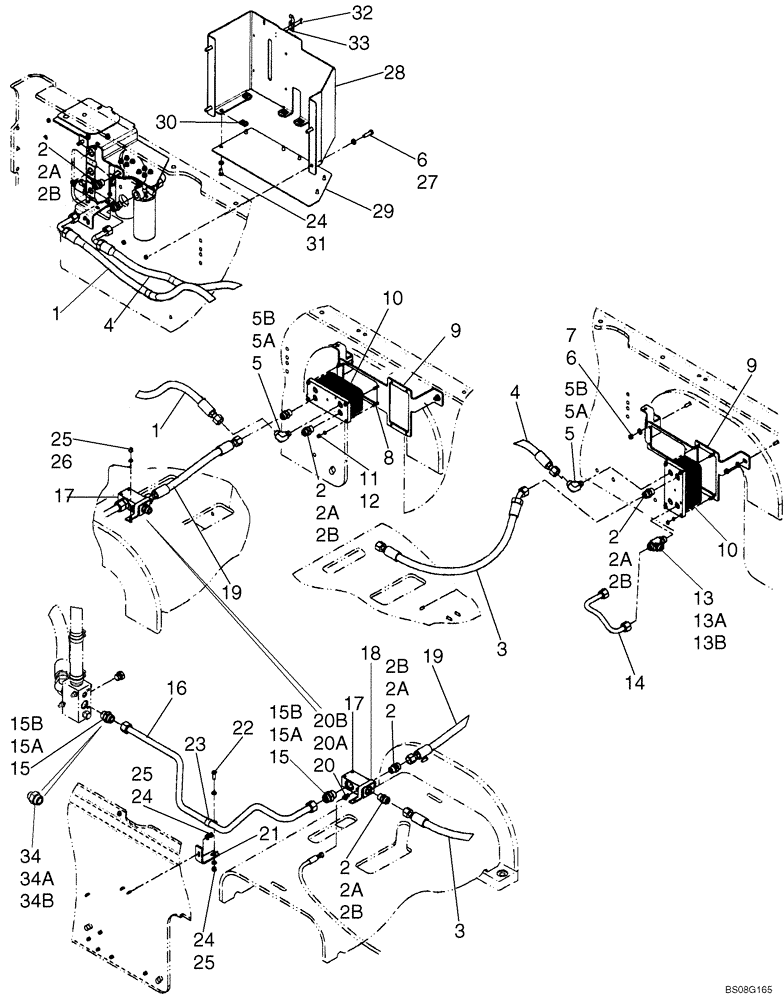

Запчасти Case 921E (06-23) - HYDRAULICS - AXLES - COOLER (06) - POWER TRAIN

1

87529165

HOSE ASSY.

Filter to Front Cooler; 1323 mm ( 52 in. )

1шт.

2

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 2A, 2B

7шт.

2a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

3

87529172

HOSE ASSY.

Rear Cooler to Return; 887 mm ( 35 in. )

1шт.

4

87551325

HOSE

Filter to Rear Cooler; 1353 mm (53 - 1/4 in. )

1шт.

5

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 5A, 5B

2шт.

5a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

7

829-1412

NUT,M12, Cl 10.9

2шт.

8

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

9

87567862

BRACKET

Axle Cooler Mounting

1шт.

10

87567860

COOLER

Axle Oil, 23 Plate Stack

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

12

892-11008

LOCK WASHER,8mm ID

8шт.

13

700-428

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 13A, 13B

1шт.

13a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

13b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

14

87551322

HYD TUBE,0.75" OD

Cooler to Cooler; 184 mm ( 7 - 1/4 in. )

1шт.

15

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 15A, 15B

1-2шт.

15a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

15b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss

1шт.

16

87575582

HYD TUBE,1" OD

Valve to Manifold; 968 mm ( 38 in. )

1шт.

17

87546215

MANIFOLD

Axle Cooler

1шт.

18

87551324

BRACKET

Mounting

1шт.

19

87567851

HOSE,19.05mm ID x 512mm L, SAE 100R1

Front Cooler to Return; 512 mm (20 in. )

1шт.

20

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. Refs 20A, 20B

1шт.

20a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

20b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss

1шт.

21

87515958

BRACKET

Tube Mounting; Replaces 87549768

1шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

23

515-25254

CLAMP,1", Insul, 1/2" Bolt

Replaces 515-24302 Clamp Used On Some Models

1шт.

24

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

26

892-11010

LOCK WASHER,M10

1шт.

27

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

28

87529163

PLATE

Filter Cover

1шт.

29

87593012

COVER

Axle Cooler Bottom

1шт.

30

833-40310

NUT,M10, U

6шт.

31

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

6шт.

32

151-515

RIVET,Pop, .146" x .425"

2шт.

33

60-4640T1

LATCH

1шт.

34

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

If Used

1шт.

34a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal, Not Illustrated

1шт.

34b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss, Not Illustrated

1шт.
