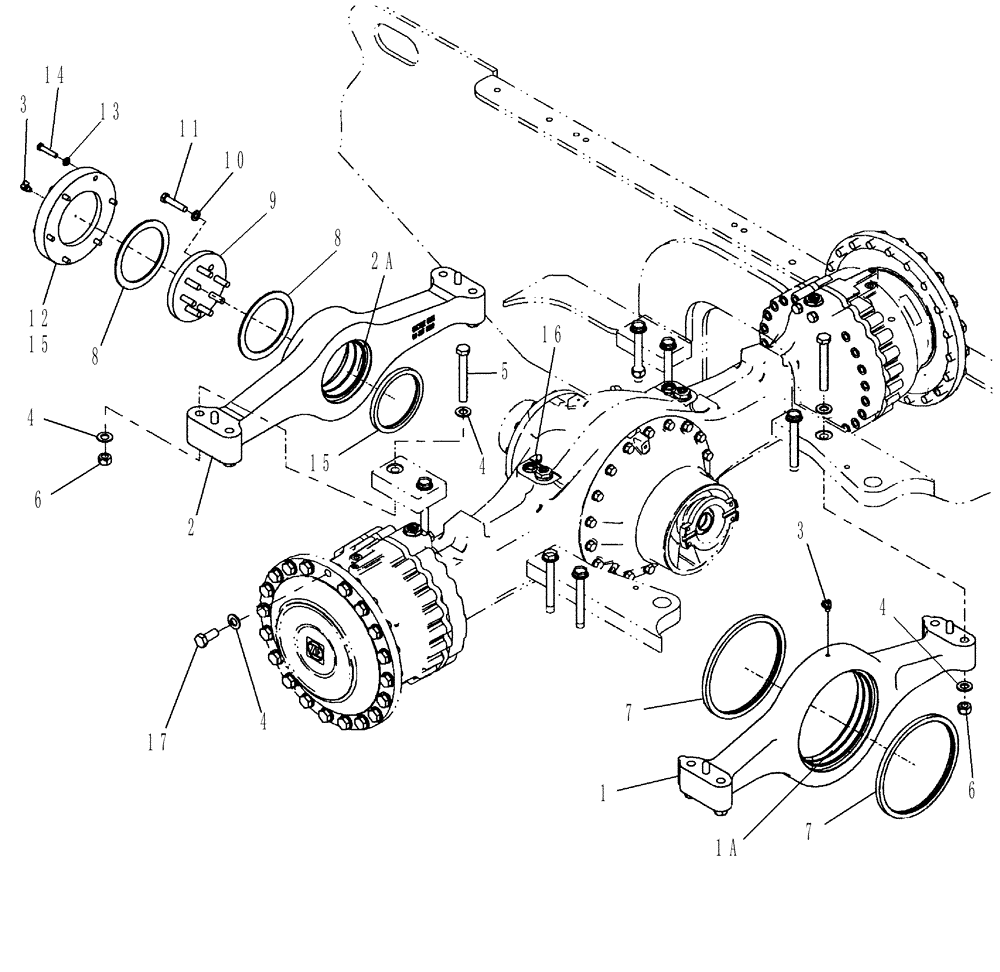

Запчасти Case 921E (06-21) - AXLE, REAR - MOUNTING (06) - POWER TRAIN

87357478

AXLE

Rear; See Figures 06-20, 06-21A, 06-22, 07-03, 07-03A

1шт.

87474797R

REMAN-REAR AXLE

1шт.

87474797C

CORE-REAR AXLE

Return Number

1шт.

1

87359894

TRUNNION

Front, Gray; Replaces Unfinished Trunnion 87582333, For dowel see 18

1шт.

1a

313960A2

BUSHING,290.88mm ID x 303.34mm OD x 50mm L

1шт.

2

87359882

TRUNNION

Rear, Gray; Replaces Unfinished Trunnion 87582332, For dowel see 18

1шт.

2a

105887A1

BUSHING,170.23mm ID x 182.78mm OD x 64mm L

1шт.

3

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

2шт.

4

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

58шт.

5

827-22170

BOLT,Hex, M22 x 2.5 x 170mm, Cl 10.9

BOLT, M22 x 170; 10.9

4шт.

6

829-1422

NUT,M22 x 2.5, Cl 10

4шт.

7

87687167

OIL SEAL

Oil, Front Trunnion; Replaces 87673192, 314468A1 Used On Some Models

2шт.

8

L128209

WASHER,172.2mm ID x 216mm OD x 5mm Thk

Trunnion; Thrust

2шт.

9

L128277

SPACER

Trunnion; Rear

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

11

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

12

87359893

COVER

Trunnion; Rear

1шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

14

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

6шт.

15

L128291

SEAL

Rear Trunnion

1шт.

16

8603201

BREATHER

Valve, Rear Axle

1шт.

17

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

40шт.

18

37-11236

DOWEL,3/4" x 2 1/4"

2шт.
