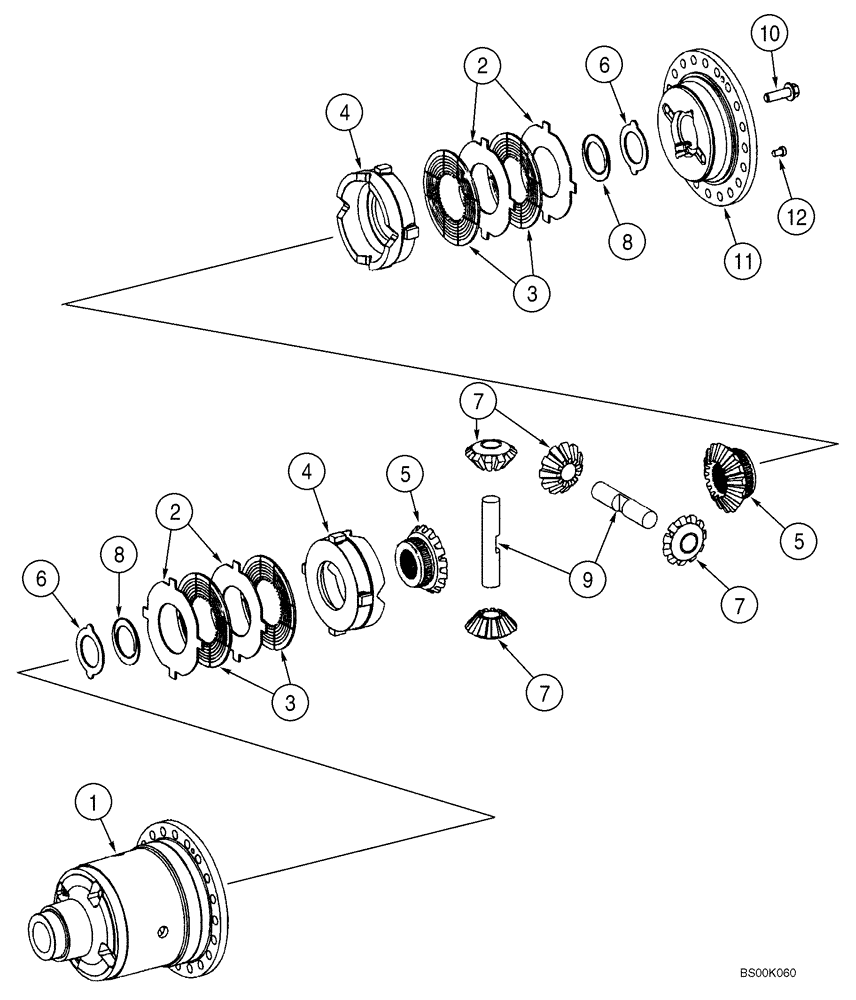

Запчасти Case 921E (06-20) - AXLE, FRONT AND REAR - DIFFERENTIAL (06) - POWER TRAIN

87357475

AXLE

Front; Incl. Refs. 1-12, Includes Parts on Figures 06-18A - 06-20, 07-03, 07-03A

1шт.

87474791R

REMAN-FRONT AXLE

1шт.

87474791C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87357478

AXLE

Rear; Incl. Refs. 1-12, Includes Parts on Figures 06-20, 06-21A, 06-22, 07-03, 07-03A

1шт.

87474797R

REMAN-REAR AXLE

1шт.

87474797C

CORE-REAR AXLE

Return Number

1шт.

384506A1

AXLE DIFFERENTIAL

Incl. Refs. 1-12

1шт.

1

384507A1

AXLE DIFFERENTIAL

1шт.

2

242154A1

CLUTCH DISC

CLUTCH DISK 3.0 mm, Outer

4шт.

2

242155A1

CLUTCH DISC

CLUTCH DISK 2,9 mm, Outer

4шт.

2

242156A1

CLUTCH DISC

CLUTCH DISK 3,1 mm, Outer

4шт.

2

242157A1

CLUTCH PLATE

CLUTCH DISK 2,7 mm, Outer

4шт.

2

242158A1

CLUTCH PLATE

CLUTCH DISK 3,3 mm, Outer

4шт.

3

242159A1

CLUTCH PLATE

CLUTCH DISK Inner

4шт.

4

243354A1

THRUST RING

2шт.

5

384508A1

GEAR

16 T, Side

2шт.

6

120017A1

THRUST WASHER

Outer

2шт.

7

120018A1

PINION

Pinion

4шт.

8

120019A1

THRUST WASHER

Inner

2шт.

9

120020A1

PIN

2шт.

10

184716A1

SCREW

20шт.

11

384509A1

COVER

1шт.

12

193152A1

BOLT

2шт.
