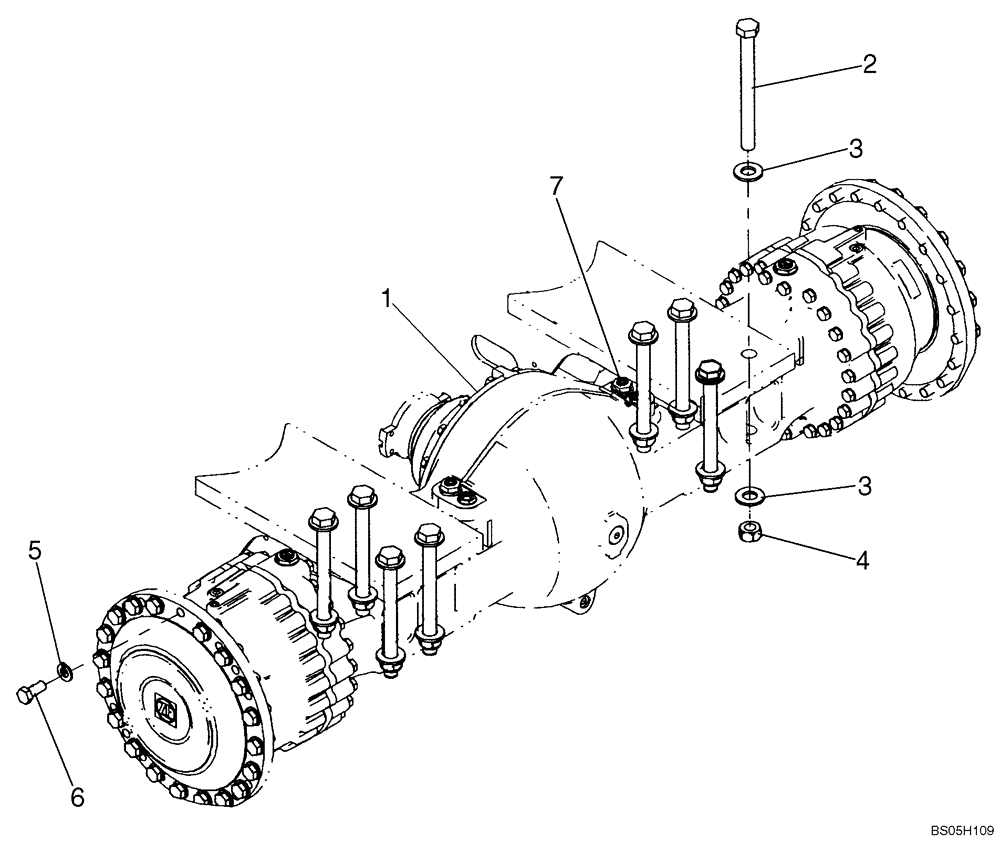

Запчасти Case 921E (06-18) - AXLE, FRONT - MOUNTING (06) - POWER TRAIN

1

87357475

AXLE

Front; See Figures 08-18A - 08-20, 07-03, 07-03A

1шт.

1

87474791R

REMAN-FRONT AXLE

1шт.

1

87474791C

CORE-FRONT AXLE 4WD

Return Number

1шт.

2

87522179

BOLT,Hex, M30 x 2 x 320mm, Cl 10.9

M30 x 320; 10.9

8шт.

3

87036956

WASHER,32.8mm ID x 66.5mm OD x 6mm Thk

16шт.

4

829-13430

NUT,M30 x 1.5, Cl 10

8шт.

5

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

40шт.

6

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

40шт.

7

8603201

BREATHER

Valve

1шт.
