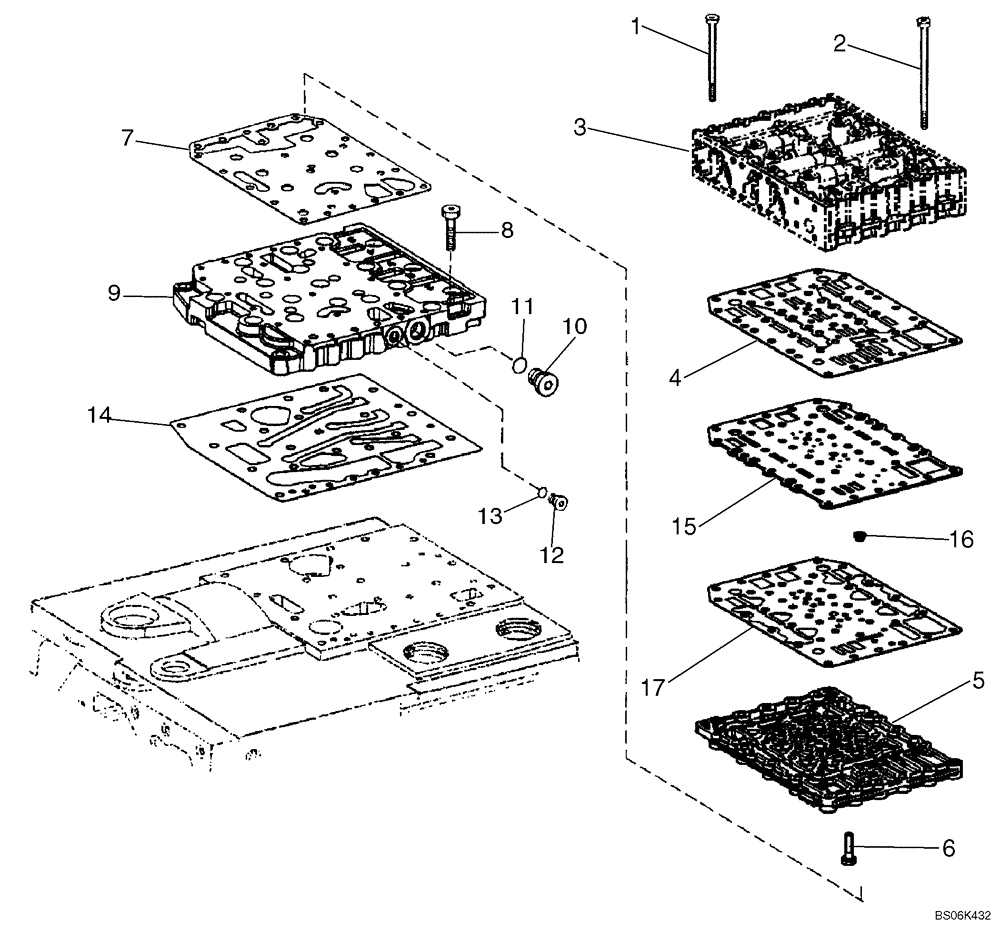

Запчасти Case 921E (06-15) - TRANSMISSION - VALVE PLATES (06) - POWER TRAIN

87347258

TRANSMISSION

Incl. Refs. 1-14, Includes Parts on Figures 06-03 - 06-17A, 07-02

1шт.

87347258R

REMAN-TRANSMISSION

Remanufactured Transmission; 921E, Model Number 4WG260, Stock Number 4646 054 094 - ZF

1шт.

87347258C

CORE-TRANSMISSION

Return Number

1шт.

1

8603182

SCREW,M6 x 76mm

M6 x 76

17шт.

2

8605458

SCREW,M6 x 100mm, Cl 10.9

M6 x 100

6шт.

3

87712666

BLOCK

Replaces 8603365

1шт.

4

387560A1

GASKET

1шт.

5

8603628

PLATE

1шт.

6

8603183

SCREW,M6 x 23mm, Cl 10.9

M6 x 23

18шт.

7

387554A1

GASKET

1шт.

8

335470A1

CAPSCREW,Flg, 3/8" - 16 x 7/8", Gr 8

M8 x 35

20шт.

9

8605457

PLATE

1шт.

10

330928A1

PLUG

M16 x 1

1шт.

11

330929A1

O-RING,2mm Thk x 13mm ID

1шт.

12

8603366

PLUG

M 10 x 1

1шт.

13

8603215

O-RING,8mm ID x 1.5mm Width

1шт.

14

8605456

GASKET

1шт.

15

87582790

SHEET

1шт.

16

8603363

SCREEN

6шт.

17

404688A1

GASKET

1шт.
