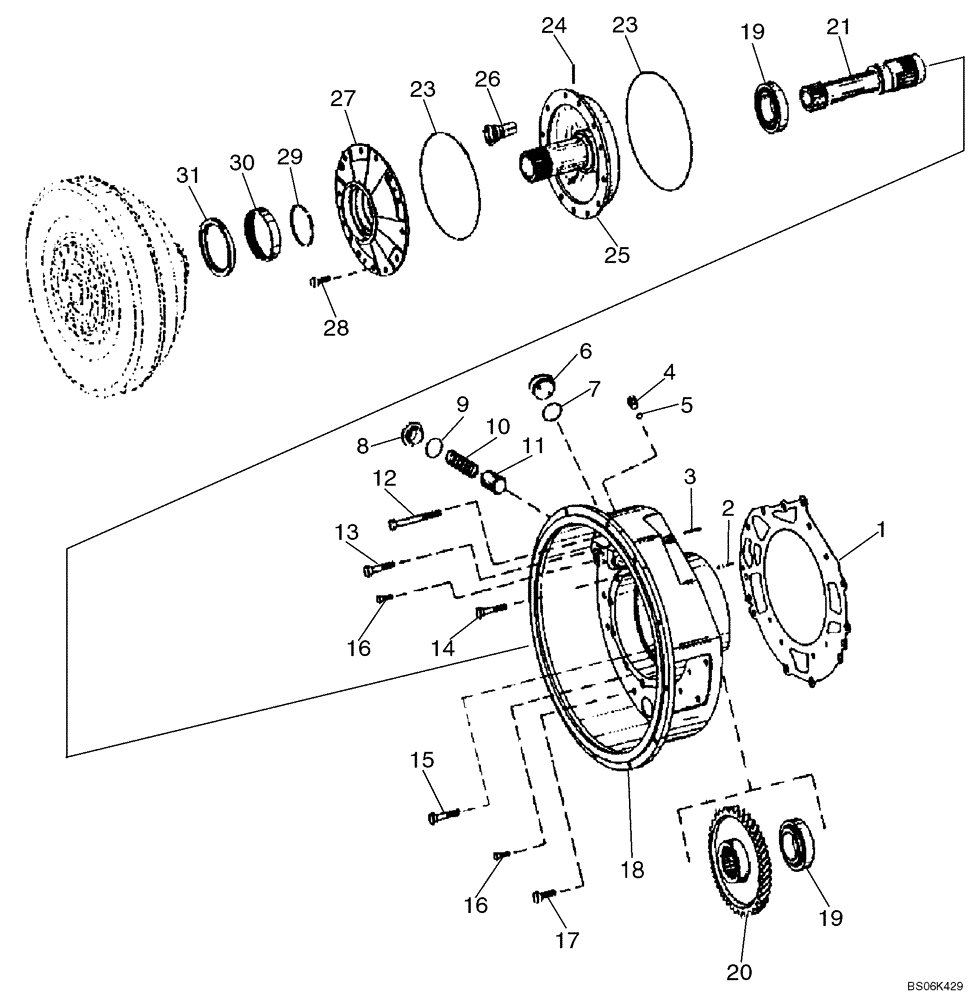

Запчасти Case 921E (06-13) - TRANSMISSION - INPUT SHAFT (06) - POWER TRAIN

87347258

TRANSMISSION

Incl. Refs. 1 - 31, Includes Parts on Figures 06-03 - 06-17A, 07-02

1шт.

87347258R

REMAN-TRANSMISSION

Remanufactured Transmission; 921E, Model Number 4WG260, Stock Number 4646 054 094 - ZF

1шт.

87347258C

CORE-TRANSMISSION

Return Number

1шт.

1

S301836

GASKET

1шт.

2

8605380

PLUG

3шт.

3

100105A1

PIN

1шт.

4

8603366

PLUG

1шт.

5

8603215

O-RING,8mm ID x 1.5mm Width

1шт.

8

100109A1

PLUG

1шт.

9

81168C1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

1шт.

10

100103A1

SPRING

1шт.

11

100101A1

PISTON

1шт.

12

185526A1

SCREW

M12 x 55

1шт.

13

826-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

14

100098A1

BOLT

M12 x 60

1шт.

15

100097A1

BOLT

M12 x 95

2шт.

16

87582458

SCREW,Hex, M8 x 30mm

M8 x 30

4шт.

17

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

10шт.

18

8605379

HOUSING

Converter Bell

1шт.

19

8605378

TAPERED BEARING

2шт.

20

427028A1

GEAR

GEAR, Helical Gear

1шт.

21

8605377

SHAFT

1шт.

22

S301831

PISTON RING

55 x 2,5; Not Illustrated

1шт.

23

8900130459

SEALING RING

O-ring

1шт.

24

932470R1

LOCK PIN,M6 x 20, Slotted

1шт.

25

8605381

FLANGE

Oli Feed

1шт.

26

8605384

VALVE PRESSURE RELIE

1шт.

27

8605383

BEARING COVER

Bearing

1шт.

28

100096A1

SCREW

M10 x 35

12шт.

29

100100A1

CIRCLIP

1шт.

30

S301867

NEEDLE BEARING,Needle, 90mm ID x 100mm OD x 16mm W

1шт.

31

S301868

SEAL

SEALRING

1шт.
