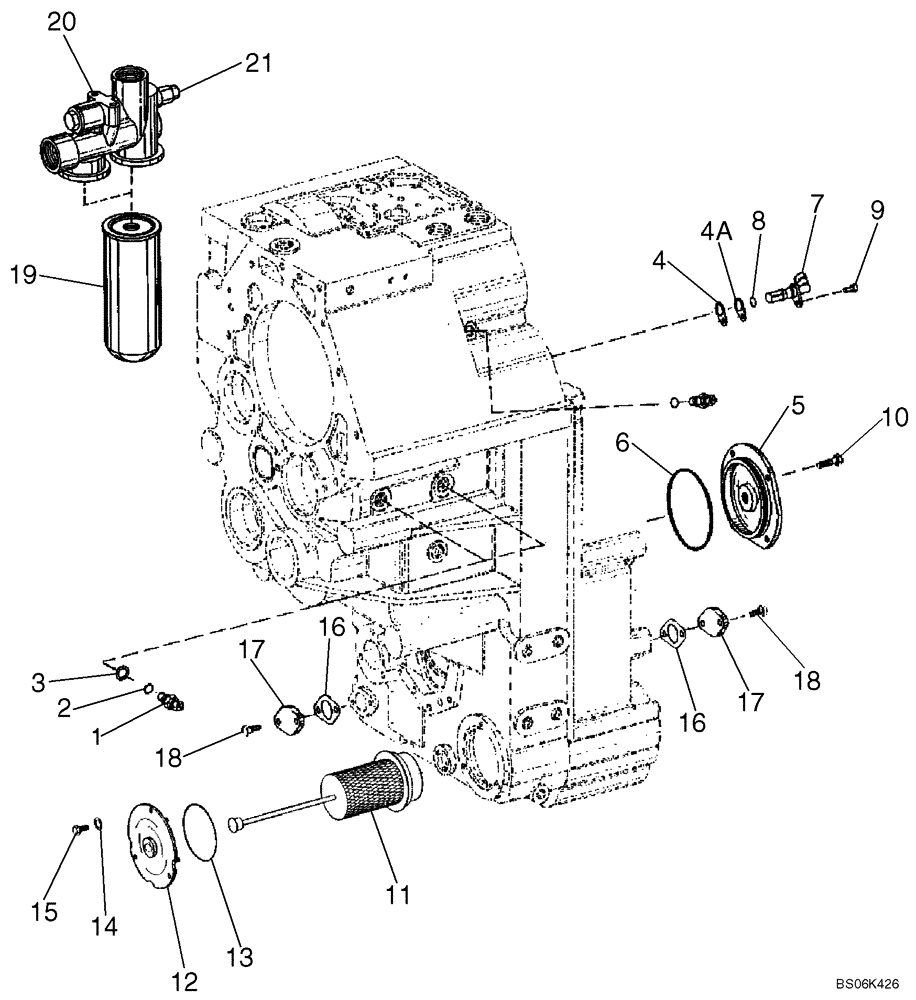

Запчасти Case 921E (06-05) - TRANSMISSION - FILTERS AND SENSORS (06) - POWER TRAIN

87347258

TRANSMISSION

Incl. Refs. 1-21, Includes Parts on Figures 06-03 - 06-17A, 07-02

1шт.

87347258R

REMAN-TRANSMISSION

Remanufactured Transmission; 921E, Model Number 4WG260, Stock Number 4646 054 094 - ZF

1шт.

87347258C

CORE-TRANSMISSION

Return Number

1шт.

1

8603397

SENSOR

3шт.

2

87453989

O-RING

3шт.

3

S300504

SHIM,0.2mm Thk

1шт.

3

S300503

SHIM,0.3mm Thk

1шт.

3

S300502

SHIM,0.5mm Thk

1шт.

3

S300500

SHIM,1mm Thk

1шт.

3

S300499

SHIM,1.2mm Thk

1шт.

3

S300498

SHIM,1.4mm Thk

1шт.

3

S300497

SHIM,1.5mm Thk

1шт.

3

S300505

BLOCK

Shim, 1.6 mm

1шт.

3

S300506

SHIM,1.8mm Thk

1шт.

3

S300501

SHIM,2mm Thk

1шт.

4

335604A1

SHIM

3шт.

4a

335604A1

SHIM

1шт.

5

100372A1

COVER

1шт.

6

100374A1

O-RING,101mm ID x 3mm Width

1шт.

7

8603398

SENSOR

Speed, Output

1шт.

8

8603629

O-RING

1шт.

9

934660R1

HEX SOC SCREW,M8 x 16mm, Cl 8.8

1шт.

10

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

11

87453987

HYDRAULIC OIL FILTER

1шт.

12

86989635

COVER

Incl. 13

1шт.

13

898154H1

O-RING

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

15

613-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

16

8603281

GASKET

2шт.

17

8603217

COVER

2шт.

18

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

19

87519452

HYDRAULIC OIL FILTER

1шт.

20

8900130170

FILTER HEAD

1шт.

21

8603537

SWITCH

Filter Maintenance

1шт.
