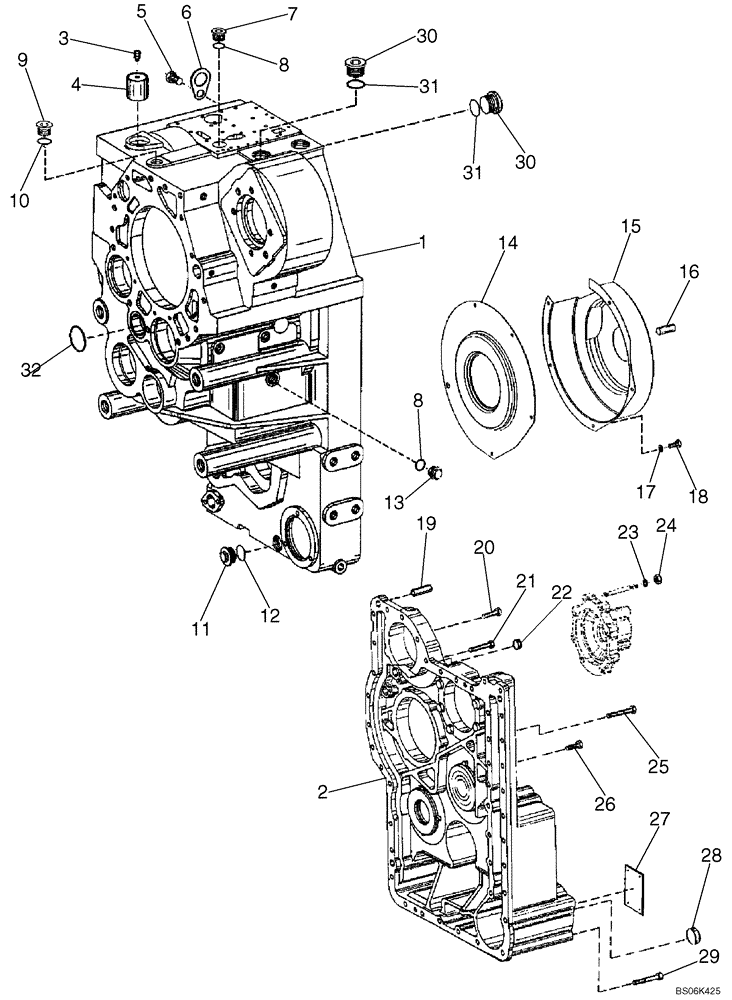

Запчасти Case 921E (06-04) - TRANSMISSION - HOUSING (06) - POWER TRAIN

87671890R

REMAN-TRANSMISSION

921E 4WG-210 4 Speed PIN NAF203144 & After

1шт.

87671890C

CORE-TRANSMISSION

Return Number

1шт.

87347258

TRANSMISSION

Incl. Refs. 1 - 32, Includes Parts on Figures 06-03 - 06-17A, 07-02

1шт.

87347258R

REMAN-TRANSMISSION

Remanufactured Transmission; 921E, Model Number 4WG260, Stock Number 4646 054 094 - ZF

1шт.

87347258C

CORE-TRANSMISSION

Return Number

1шт.

1

87582459

HOUSING

1шт.

2

8605387

HOUSING

Cover

1шт.

3

8603214

BREATHER

1шт.

4

129650A1

ADAPTER

1шт.

5

100082A1

BOLT

M16 x 25

2шт.

6

100081A1

LARGE PLATE

PLATE, LARGE

2шт.

7

8605386

PLUG

1шт.

8

3133948R1

O-RING,2mm Thk x 23mm ID

2шт.

9

A52148

PLUG

M30 x 1.5

1шт.

10

A52368

SEAL

27 x 2

1шт.

11

8603319

PLUG

35 x 2

1шт.

12

8603318

O-RING

1шт.

13

8603210

PLUG

M26 x 1.5

1шт.

14

87582460

SHEET

Cover

1шт.

15

87582461

SHEET

Cover

1шт.

16

100073A1

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

17

895-10008

WASHER,M8 x 16 x 1.6

4шт.

18

8605389

SCREW,M8 x 16mm, Cl 8.8

5шт.

19

100089A1

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

20

8605393

SCREW,Hex Skt, M10 x 40mm, Cl 8.8

M10 x 40

8шт.

21

8605390

SCREW,Hex Skt, M10 x 55mm, Cl 8.8

M10 x 55

1шт.

22

641-3320

PLUG,M20, Conical

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

24

825-1010

NUT,M10, Cl 8

2шт.

25

8605392

SCREW,Hex, M10 x 70mm, Cl 8.8

M10 x 70

8шт.

26

8605388

SCREW,M10 x 32mm

M10 x 32

14шт.

27

NSS

NOT SOLD SEPARAT

Type Plate

1шт.

28

81415C1

CAP

M40

1шт.

29

8605391

SCREW,#10 - 70, Cl 8.8

M10 x 70

8шт.

30

100087A1

PLUG

M42 x 2

2шт.

32

8603207

O-RING,2.5mm Thk x 38mm ID

M38 x 2.5

1шт.
