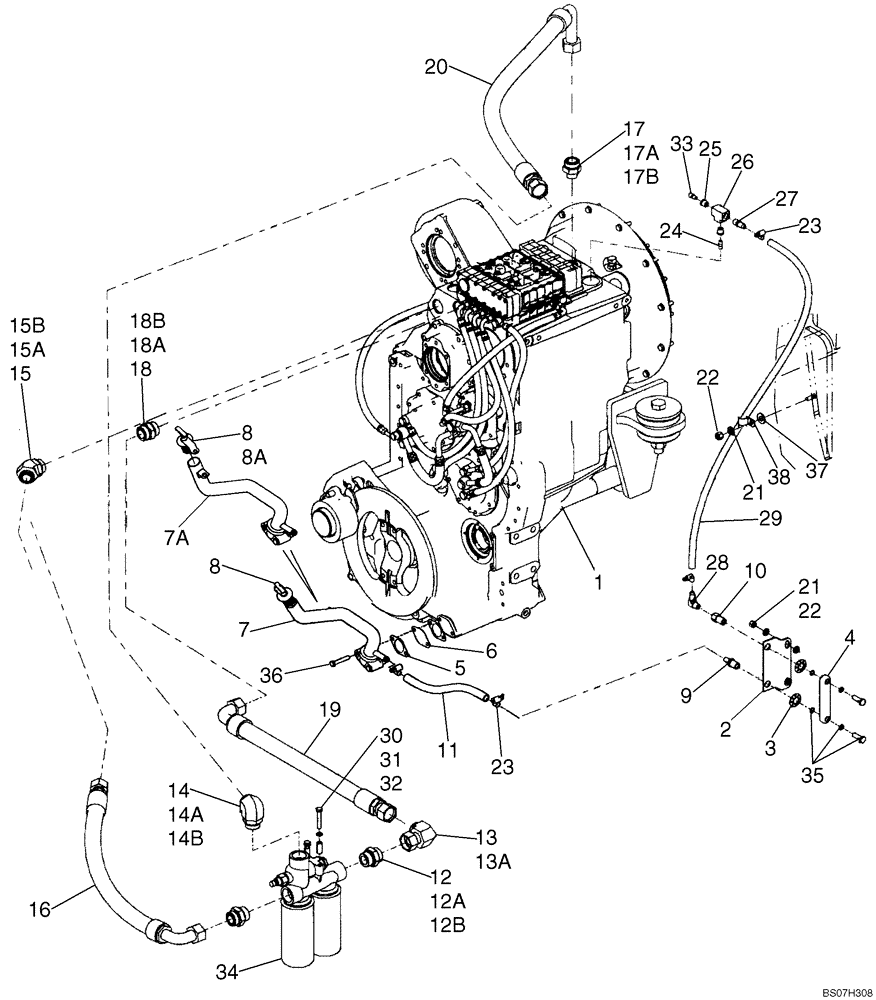

Запчасти Case 921E (06-02) - TRANSMISSION - HYDRAULICS, TRANSMISSION FILL TUBE (06) - POWER TRAIN

1

87347258

TRANSMISSION

4WG260-4; Includes Parts on Figures 06-03 - 06-17A, 07-02

1шт.

1

87347258R

REMAN-TRANSMISSION

Remanufactured Transmission; 921E, Model Number 4WG260, Stock Number 4646 054 094 - ZF

1шт.

1

87347258C

CORE-TRANSMISSION

Return Number

1шт.

2

87393086

BRACKET

Sight Gauge

1шт.

3

131-141

PUSH-ON NUT,.74", Push-on

2шт.

4

86988366

SIGHTGLASS

1шт.

5

8603281

GASKET

2шт.

6

E135229

FILTER SCREEN

1шт.

7

87534519

TUBE,31.75 mm OD x 343, 335 mm L

Oil Fill; No Longer Available, Order Ref. 7A, 87664594

1шт.

7a

87664594

TUBE,31.75 mm OD x 380, 340 mm L

Oil Fill

1шт.

8

443565A1

CAP

Fill, Replaces 349446A1; No Longer Used, Order 87687168 Unvented Fill Cap, Ref. 8A

1шт.

8a

87687168

FILLER CAP

Unvented

1шт.

9

L125836

FITTING

Sight Gauge

1шт.

10

L129630

ADAPTER

Sight Gauge

1шт.

11

87546216

HOSE,12.7mm ID x 260mm L, SAE 100R6

Oil Return

1шт.

12

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Refs. 12A, 12B

2шт.

12a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

12b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss

1шт.

13

701-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

Incl Ref. 13A

1шт.

13a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

14

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Ref. 14A, 14B

1шт.

14a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

14b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss

1шт.

15

700-354

ELBOW,45 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Ref. 15A, 15B

1шт.

15a

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

15b

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

16

87356467

HOSE ASSY.

To Filter; 1020mm ( 40 in )

1шт.

17

87534518

HYD CONNECTOR

STR THD 1-11/16 ORFS x M30 ORB; Incl. 17A, 17B

1шт.

17a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

17b

84432616

O-RING,26.6mm ID x 2.9mm Width

O-RING 26.6 ID x 2.9mm; M30; Boss Seal

1шт.

18

L128604

ADAPTER

Incl. Refs. 18A, 18B; If Used

1шт.

18

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Refs. 18C, 18D; If Used

1шт.

18a

S302118

WASHER

Used W/ Adaptor L128604

1шт.

18b

S302119

O-RING,37.7mm ID x 3.5mm Width

Used W/ Adaptor L128604

2шт.

18c

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss; Used W/ Connector 700-133; Not Illustrated

1шт.

18d

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal; Used W/ Connector 700-133; Not Illustrated

1шт.

19

87394826

HOSE ASSY.

From Transmission Filter; 745mm ( 29in )

1шт.

20

87519395

HOSE ASSY.

Transmission Filter Bypass; 1055mm ( 41-1/2 in )

1шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

16-17шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2-3шт.

23

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

24

221-103

FITTING

1/8 PT x 1

1шт.

25

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

2шт.

26

221-423

TEE,3/8" NPT

1шт.

27

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

28

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

29

L128676

RADIATOR HOSE,12.70 mm ID x 1150.00, SAE 30R2 Type I

1шт.

30

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

31

87532054

SPACER

2шт.

32

892-11010

LOCK WASHER,M10

1шт.

33

REF

INSTRUCTION

SUPPLIED WITH TRANSMISSION

1шт.

34

REF

INSTRUCTION

SUPPLIED WITH TRANSMISSION

1шт.

35

REF

INSTRUCTION

SUPPLIED WITH SIGHT GAUGE

1шт.

36

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

37

895-15012

WASHER,M12 x 28 x 2.5

If Used

1шт.

38

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

If Used

1шт.
