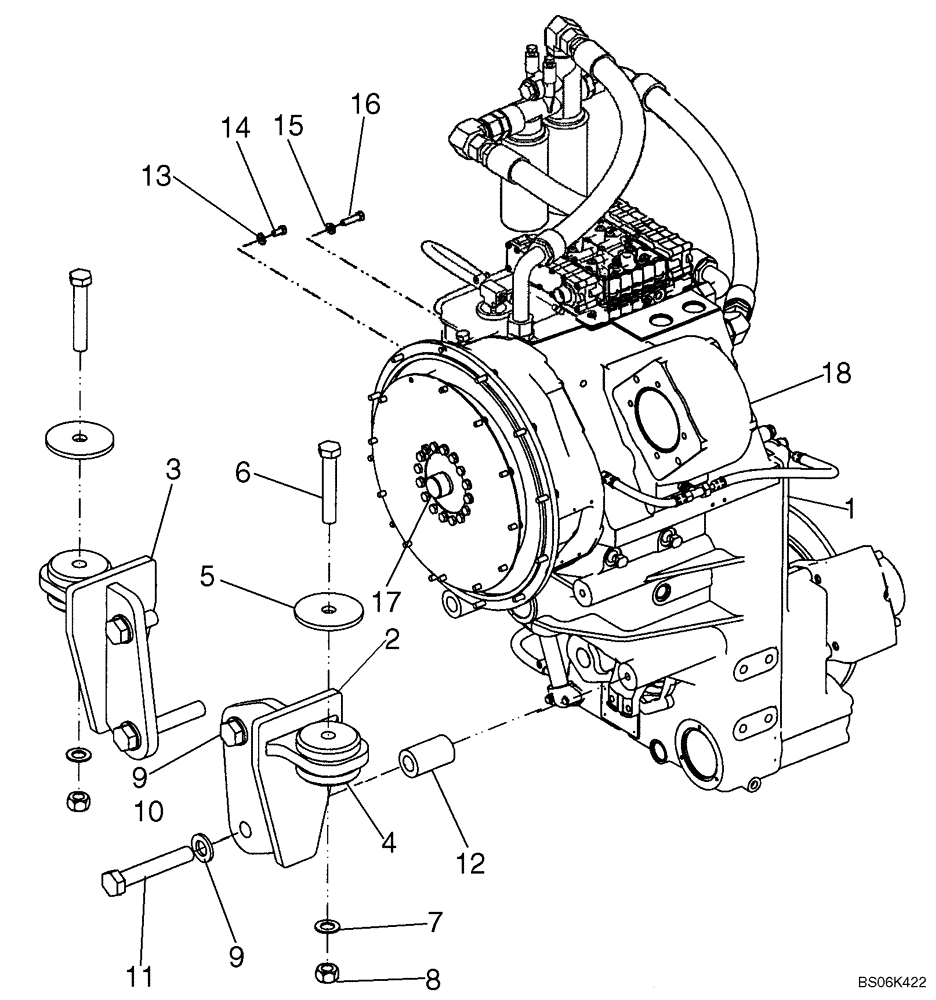

Запчасти Case 921E (06-01) - MOUNTING - TRANSMISSION (06) - POWER TRAIN

1

87347258

TRANSMISSION

4WG260-4 4-Speed Transmission; New; Includes Parts on Figures 06-03 - 06-17A, 07-02

1шт.

1

87347258R

REMAN-TRANSMISSION

Remanufactured Transmission: 921E, Model Number 4WG260, Stock Number 4646 054 094 - ZF

1шт.

1

87347258C

CORE-TRANSMISSION

Return Number

1шт.

2

87347880

BRACKET

LH

1шт.

3

87347889

BRACKET

RH

1шт.

4

114359A1

MOUNT

Mount

2шт.

5

L129147

WASHER

Transmission Mounting

2шт.

6

326-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

2шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Heat Treated

2шт.

8

429-1016

NUT,1"-8, G8

2шт.

9

396-31119

WASHER,1 1/4" x 2 1/4" x 1/4", HDN

4шт.

10

828-30080

BOLT,Hex, M30 x 3.5 x 80mm, Class 10.9

4шт.

11

827-30180

BOLT,Hex, M30 x 3.5 x 180mm, Cl 10.9

2шт.

12

87356473

SPACER

Transmission Mount

2шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

14

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

12шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

16шт.

16

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

12шт.

17

345-56

LUBRICANT

Loctite 767 Anti-sieze

1шт.

18

345-84

ADHESIVE

Clear

1шт.
