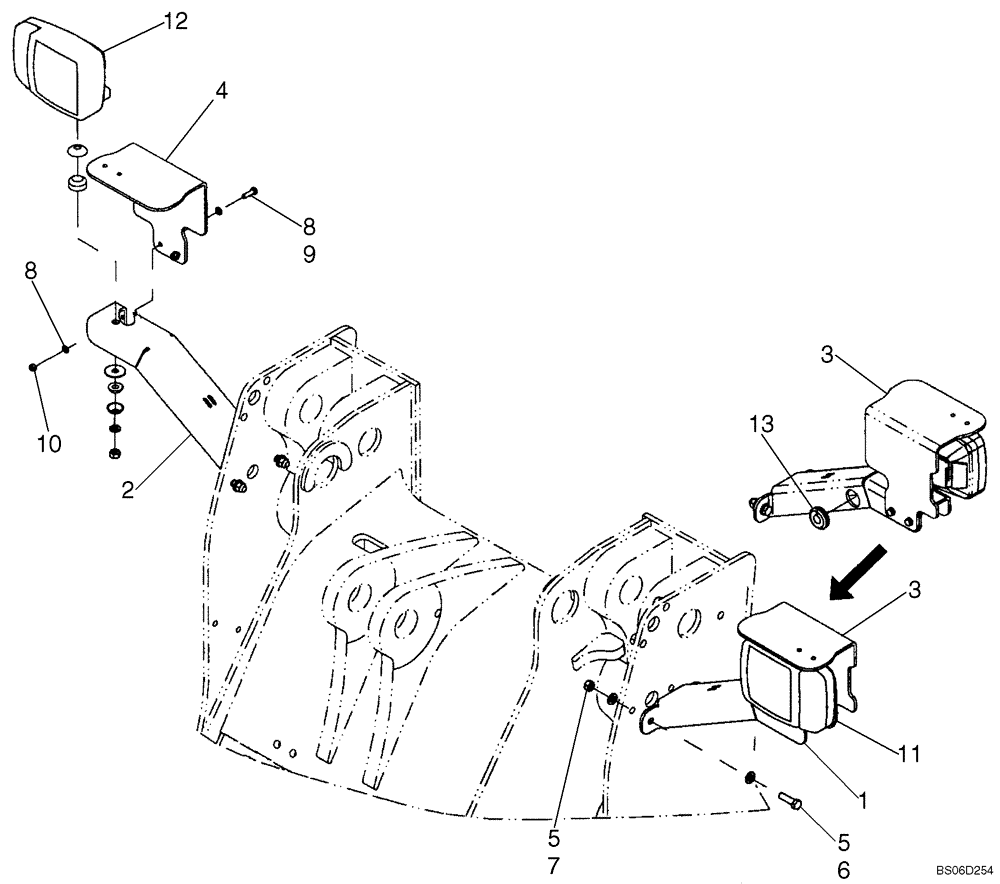

Запчасти Case 821E (04-18A) - MOUNTING - LAMP, FRONT (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

EUROPE

1шт.

1

87534020

BRACKET

LH Front

1шт.

2

87534017

BRACKET

RH Front

1шт.

3

87351718

SHIELD

LH

1шт.

4

87384993

SHIELD

RH

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

11

368056A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Left Hand; Includes Hardware; See Figure 04-18B

1шт.

12

368055A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Right Hand; Includes Hardware; See Figure 04-18B

1шт.

13

248-23108

GROMMET,3/4" ID x 1 7/16" Groove Dia, Str Cut

2шт.
