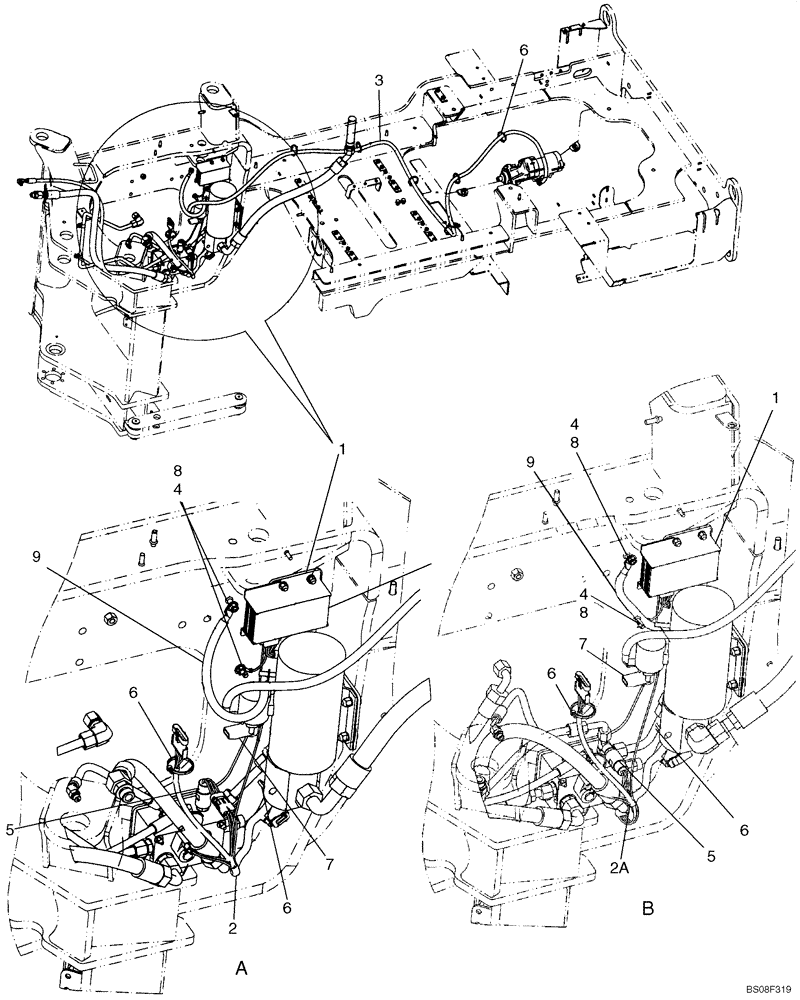

Запчасти Case 821E (04-16) - ELECTRICAL - STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

VIEW A SHOWS SYSTEM WITHOUT ACCUMULATOR, VIEW B SHOWS SYSTEM WITH ACCUMULATOR

1шт.

1

8603171

MODULE

Auxiliary Steering

1шт.

2

87323967

WIRE HARNESS

Secondary Steering Module; If Used, See Illustration Ref. A

1шт.

2a

87731986

HARNESS

WIRE, Secondary Steering Module; If Used, See Illustration Ref. B

1шт.

3

87358691

CABLE,3256mm L

Auxiliary Steering To Starter

1шт.

4

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass

2шт.

5

398888A1

PRESSURE SWITCH

Auxiliary Steering Pressure Switch

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

10шт.

7

L126713

BOOT

Electrical

1шт.

8

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

9

L129707

NEG BATTERY CABLE

1шт.
