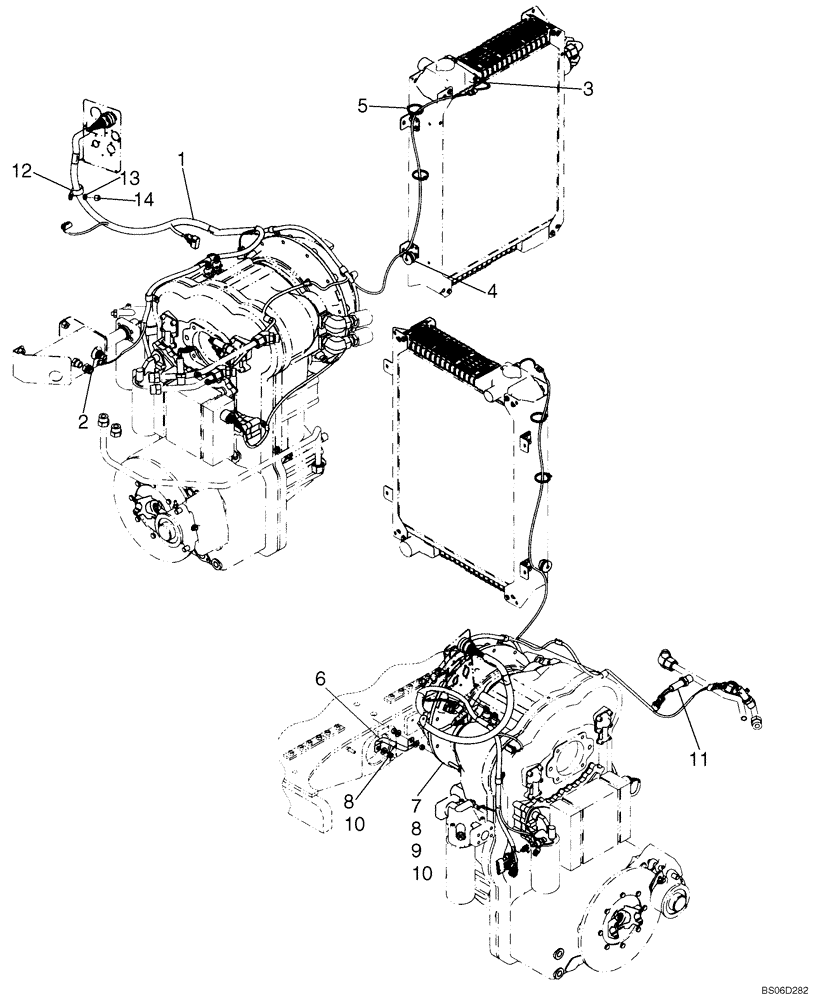

Запчасти Case 821E (04-15) - HARNESS - TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

87730168

WIRE HARNESS

Transmission; Replaces 87359047

1шт.

2

321446A1

SENSOR

Engine Coolant

1шт.

3

445786A1

WIRE HARNESS

1шт.

4

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

6

79028421

GROUND CABLE

1шт.

7

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

377899A1

SWITCH

Redundant Brake; For Use With 2.8L Brake Accumulators P/N 8603020; Prior To P.I.N. N8F203292

2шт.

11

87728742

SWITCH

Redundant Brake; For Use With 3.5L Brake Accumulators P/N 87728740; P.I.N. N8F203292 And After

2шт.

12

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

832-10406

NUT,M6 x 1, Cl 8

1шт.
