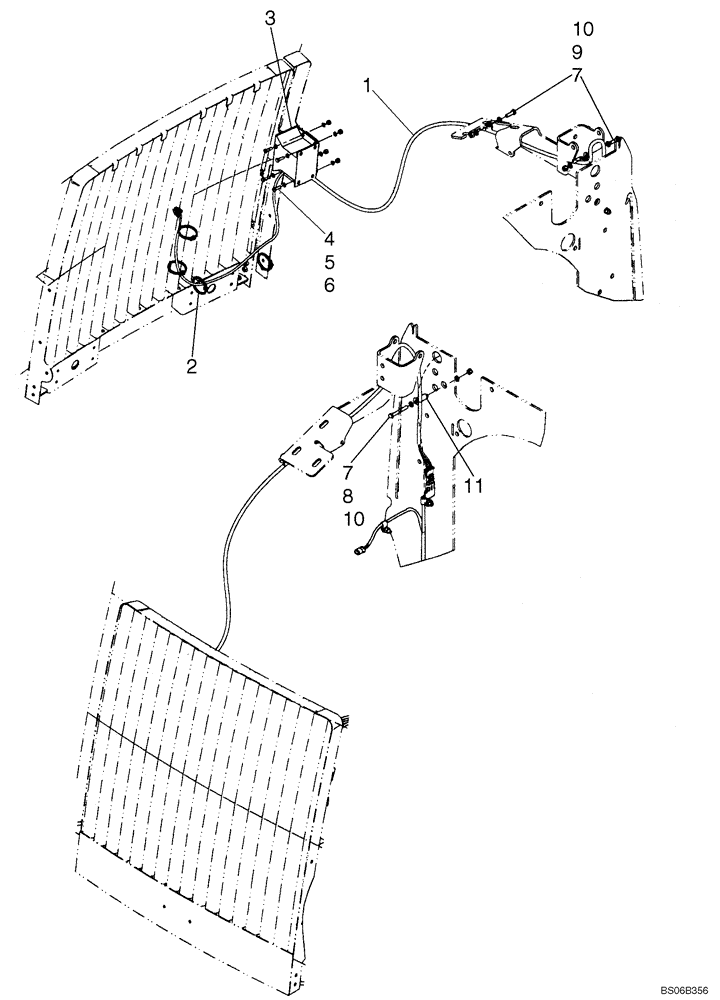

Запчасти Case 821E (04-14A) - HARNESS, HOOD - BACKUP ALARM - EUROPE (04) - ELECTRICAL SYSTEMS

1

87521817

WIRE HARNESS

Hood

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

3

D121972

ALARM

Backup

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

832-10406

NUT,M6 x 1, Cl 8

4шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

8

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

11

L126936

SPACER

1шт.
