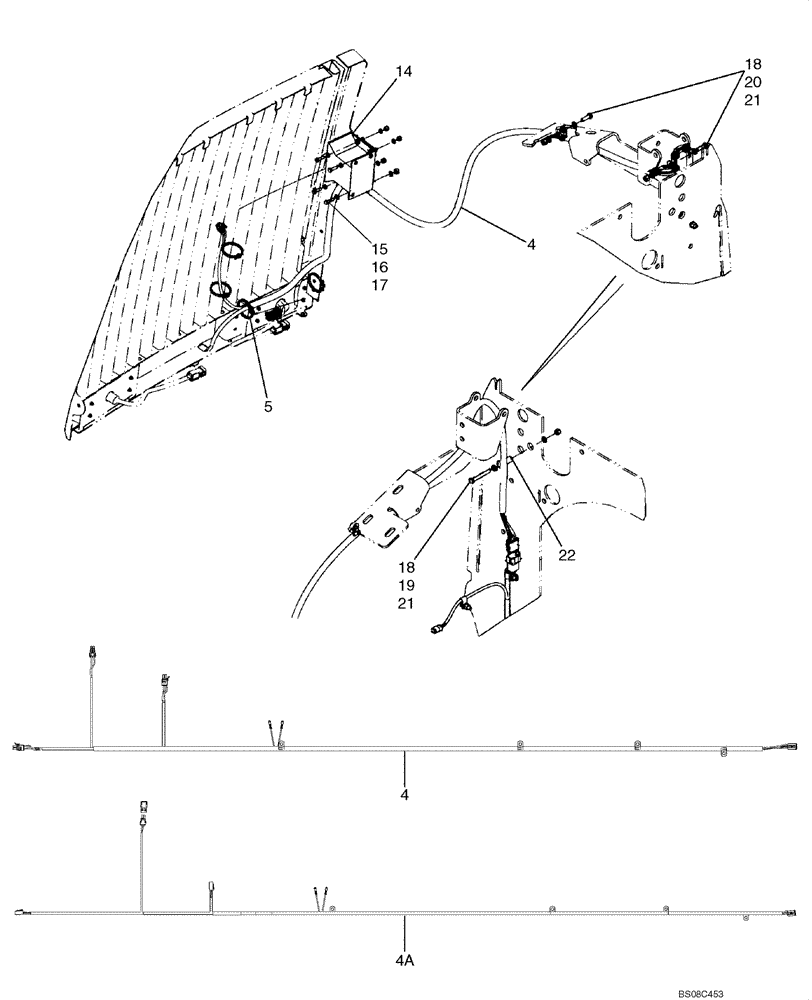

Запчасти Case 821E (04-14) - HARNESS, HOOD - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

4

87518857

WIRE HARNESS

Hood, With 4-Cav Packard Connectors For Rear Combination Lights; If Used

1шт.

4a

87613715

WIRE HARNESS

Hood, With 4-Cav Deutsch Connectors For Rear LCD Lights; If Used

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

14

D121972

ALARM

Backup

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

8шт.

15

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

If Used

8шт.

16

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

17

832-10406

NUT,M6 x 1, Cl 8

4шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

19

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

4шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

22

L126936

SPACER

1шт.
