Запчасти Case 821E (04-07) - HARNESS - PANEL, CONTROL (04) - ELECTRICAL SYSTEMS

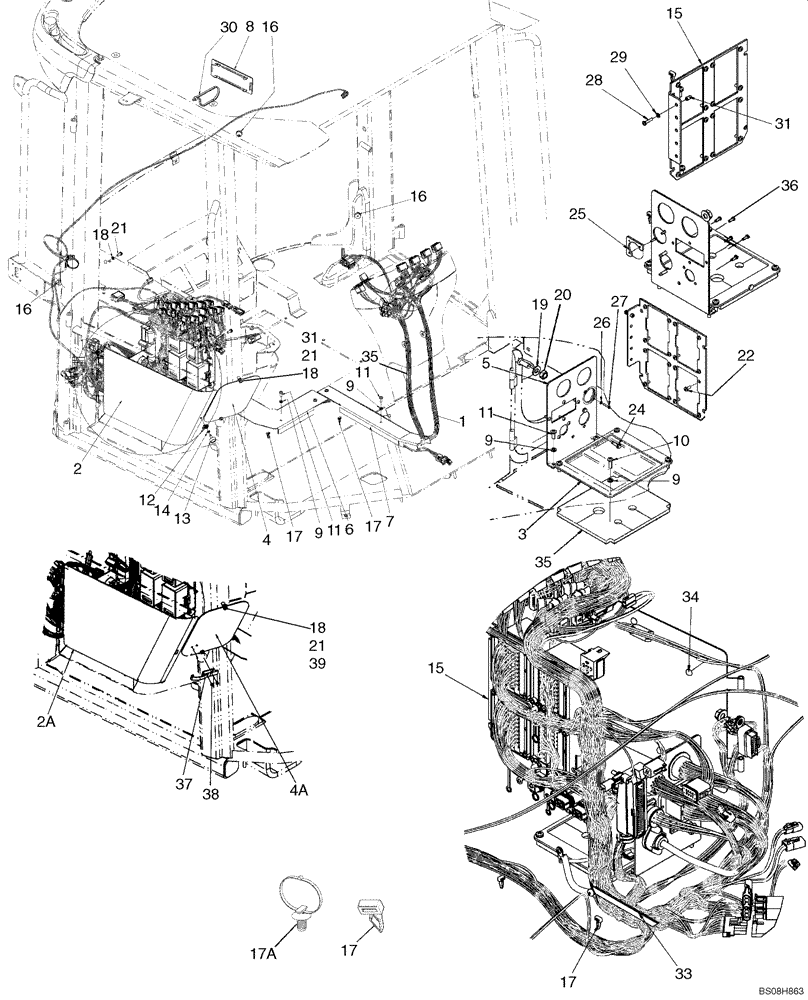

Схема запчастей Case 821E - (04-07) - HARNESS - PANEL, CONTROL (04) - ELECTRICAL SYSTEMS
15
8
2a
16
2
26
17
7
9
19
31
12
22
33
18
3
21
16
31
24
17a
21
9
21
11
17
17
6
11
31
35
39
36
10
4
27
4a
34
29
9
5
18
18
17
28
38
16
1
13
25
18
37
35
20
15
14
30

Артикул

Название

Примечание

Количество

1

87758166

WIRE HARNESS

Cab/Canopy Control Panel; Replaces 87517055, 87748734

1шт.

2

76303325

DOOR COVER

Electrical Access, Used With Pin, Ref. 13

1шт.

2a

87721000

DOOR

COVER, Electrical Access, Used With Latch, Ref. 37

1шт.

2b

84185846

DECAL

Inside Access Door (Not Shown)

2шт.

3

76303258

PLATE

1шт.

4

76303489

COVER

Console Access, Used With Pin, Ref. 13

1шт.

4a

87754956

PLATE

Console Access, Used With Latch, Ref. 37

1шт.

5

87372240

PLATE

1шт.

6

76303498

BRACKET

Cable Cover

1шт.

7

76303260

COVER

Central Cable

1шт.

8

76303606

COVER

Radio

1шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11шт.

10

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

If Used

4шт.

11

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

7шт.

10

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

If Used

4шт.

12

76303320

CLIP

If Used

1шт.

13

76303321

PIN

If Used

1шт.

14

76303319

WASHER

If Used

1шт.

15

87341862

PLATE

1шт.

16

71485202

GROMMET,M5 x 21 x 16

3шт.

17

76303347

COLLAR

If Used

5шт.

17a

87668737

CABLE TIE,203.2mm L, Nylon, Black

With Mount, If Used; Replaces 87719265 Fastener Used On Some Models

5шт.

18

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

19

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

20

253347A1

NUT,Hex, M10 x 1.5

1шт.

21

297850A1

SCREW,Cross Pan Hd, M6 x 16

8шт.

22

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

16шт.

24

86509545

SELF-TAP SCREW,#10 - 24 x 3/4"

2шт.

25

76303488

PLATE

Connector

1шт.

26

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

2шт.

27

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

2шт.

28

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

1шт.

29

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

31

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

33

87525493

RUBBER SEAL,154mm L

Wire Protection, If Used

1шт.

34

322197950

SPACER

6шт.

35

76303261

SPACER

1шт.

36

86632692

SELF-TAP SCREW,Phillips Drive, Pan HD, #8 - 18 x 1/2"

If Used

6шт.

36

86509545

SELF-TAP SCREW,#10 - 24 x 3/4"

#10 x .3/4", If Used

6шт.

37

84182193

LATCH

If Used

1шт.

38

151-515

RIVET,Pop, .146" x .425"

If Used

2шт.

39

404287A1

INSERT,M6

2шт.

40

84183141

DOOR SEAL

Service Door Top (Not Shown)

1шт.

41

84183142

DOOR SEAL

Service Door Right (Not Shown)

1шт.

42

84183144

DOOR SEAL

Service Door Left (Not Shown)

1шт.

43

84183146

GASKET

Service Door Bottom (Not Shown)

1шт.

44

84183151

GASKET

Service Door, Hinge Cover Foam Block (Not Shown)

2шт.
