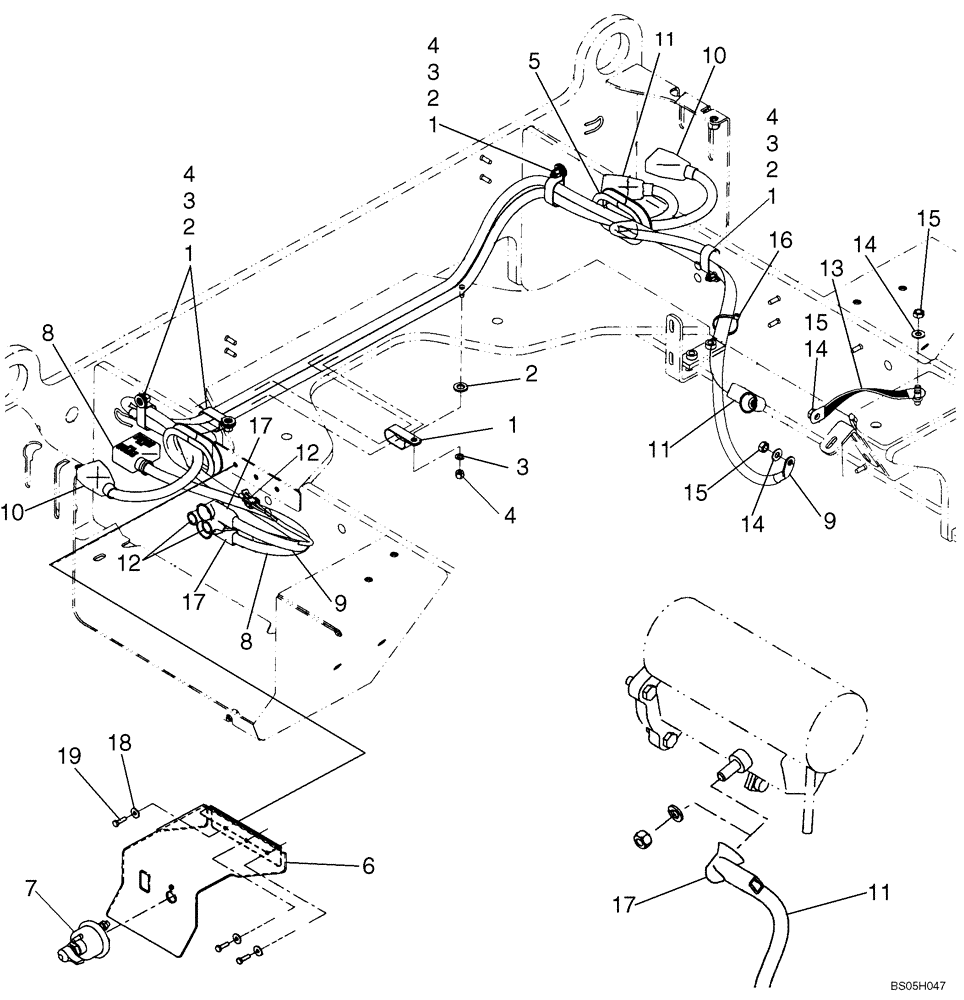

Запчасти Case 821E (04-06) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS

1

R54363

CLAMP

Double

5шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

If Used

5шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

If Used

5шт.

5

398771A1

CONDUIT

Battery Cable

2шт.

6

87329253

BRACKET

Hood Switch

1шт.

7

L126256

SWITCH

Master Disconnect

1шт.

8

87324868

NEG BATTERY CABLE

Negative To Disconnect

1шт.

9

87324875

CABLE

Ground

1шт.

10

87324722

ELECTRIC CABLE

Crossover

1шт.

11

87324979

ELECTRIC CABLE

Positive To Starter

1шт.

12

L127676

WIRE HARNESS

Disconnect

1шт.

13

L126051

GROUND STRAP

Engine Block

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

3шт.

15

253347A1

NUT,Hex, M10 x 1.5

3/8; Brass

3шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

17

L126713

BOOT

Electrical

3шт.

18

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

19

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.
