Запчасти Case 821E (03-08) - FUEL INJECTION SYSTEM - FUEL, SUPPLY (03) - FUEL SYSTEM

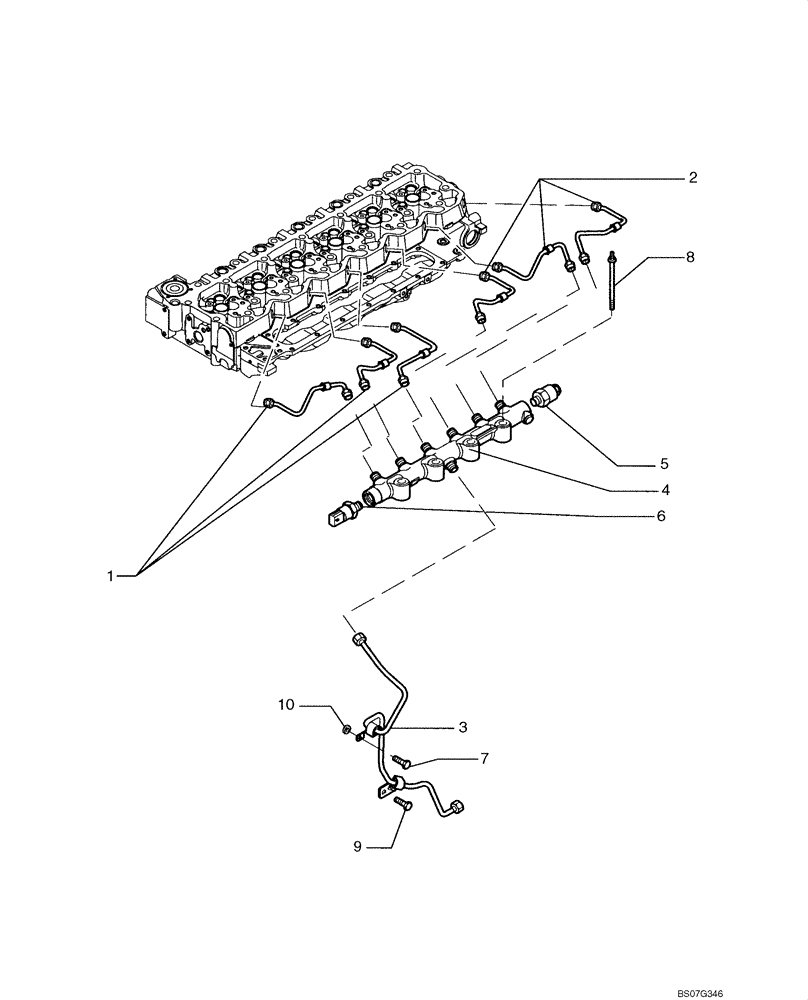

Схема запчастей Case 821E - (03-08) - FUEL INJECTION SYSTEM - FUEL, SUPPLY (03) - FUEL SYSTEM
2
3
1
5
8
6
10
9
4
7

Артикул

Название

Примечание

Количество

1

2854549

INJECTION PIPE

Fuel Supply

3шт.

2

2854544

INJECTION PIPE

Fuel Supply

3шт.

3

2854552

INJECTION PIPE

Fuel Supply

1шт.

2854540

MANIFOLD

FUEL ASSY. Incl. Refs. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

MANIFOLD, Fuel Rail

1шт.

5

2854543

VALVE PRESSURE RELIE

1шт.

6

2854542

SENSOR,FUEL PRESSURE TO THE MANIFOLD

Fuel Supply Pressure

1шт.

7

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

8

2853537

BOLT,Hex Flange Head Cap M8 x 1.25 x 125mm

4шт.

9

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

1шт.

10

2852434

SPACER

1шт.

Выбрано товаров: 11
