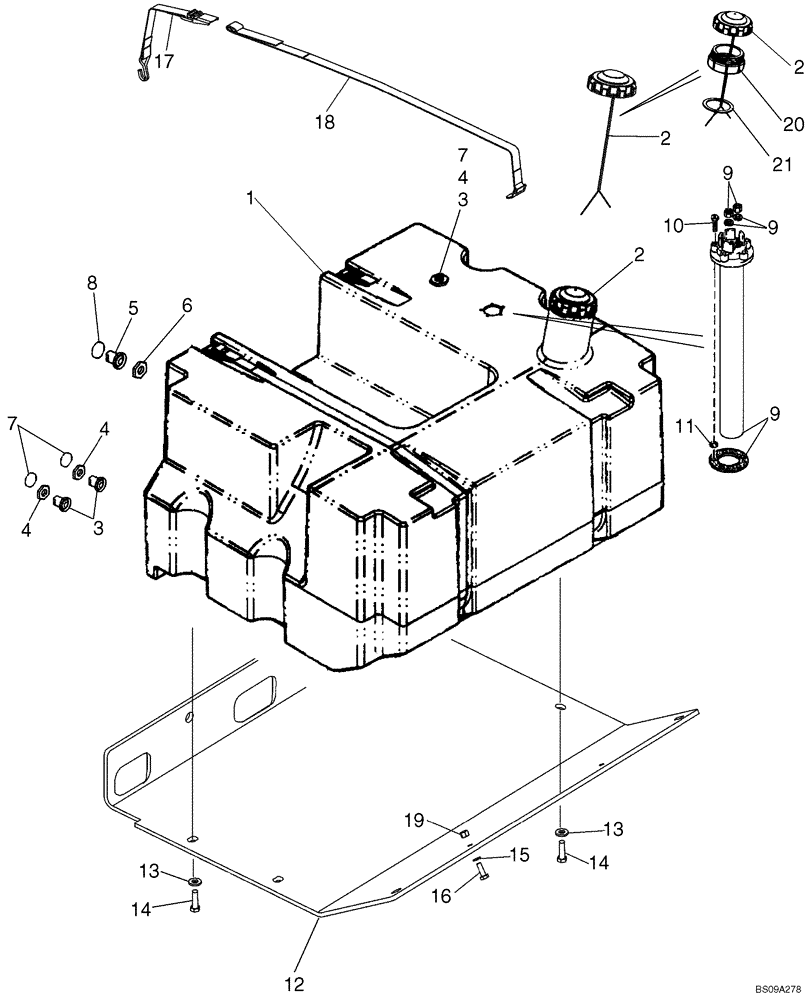

Запчасти Case 821E (03-04) - FUEL TANK - FILLER - SENDER (03) - FUEL SYSTEM

1

87303674

FUEL TANK

Incl. 1-8

1шт.

1a

8604441

FITTING

Fuel Supply, Not Illustrated

1шт.

1b

8604442

FITTING

Fuel Drain, Not Illustrated

1шт.

2

8604443

FILLER CAP

1шт.

3

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Bolt; 1/4 NPTF; Replaces 87435505

3шт.

4

1251791C1

JAM NUT,3/4" - 16 LH Thread

1/4 NPTF

3шт.

5

87707148

FITTING

Bolt; 3/8 NPTF; Replaces 87435224

1шт.

6

282709A1

NUT

3/8 NPTF

1шт.

7

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3шт.

8

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

9

87542712

SENDER UNIT

Sender Fuel Level, Incl. Ref. 9A

1шт.

9a

87617083

KIT

NUT PACK; For Fuel Level Sender, Replaces 35531A1; Not Illustrated

1шт.

10

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

5шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

12

8602250

PLATE

Fuel Tank; If Used

1шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

15

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

17

366905A1

SECURING STRAP

Fuel Tank; Short

2шт.

18

366904A1

SECURING STRAP

Fuel Tank; Long

2шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

20

84130479

ADAPTER

Fuel Tank; If Used

1шт.

21

84144829

GASKET,67mm ID x 84mm OD x 3mm Thk

GASKET; If Used

1шт.
