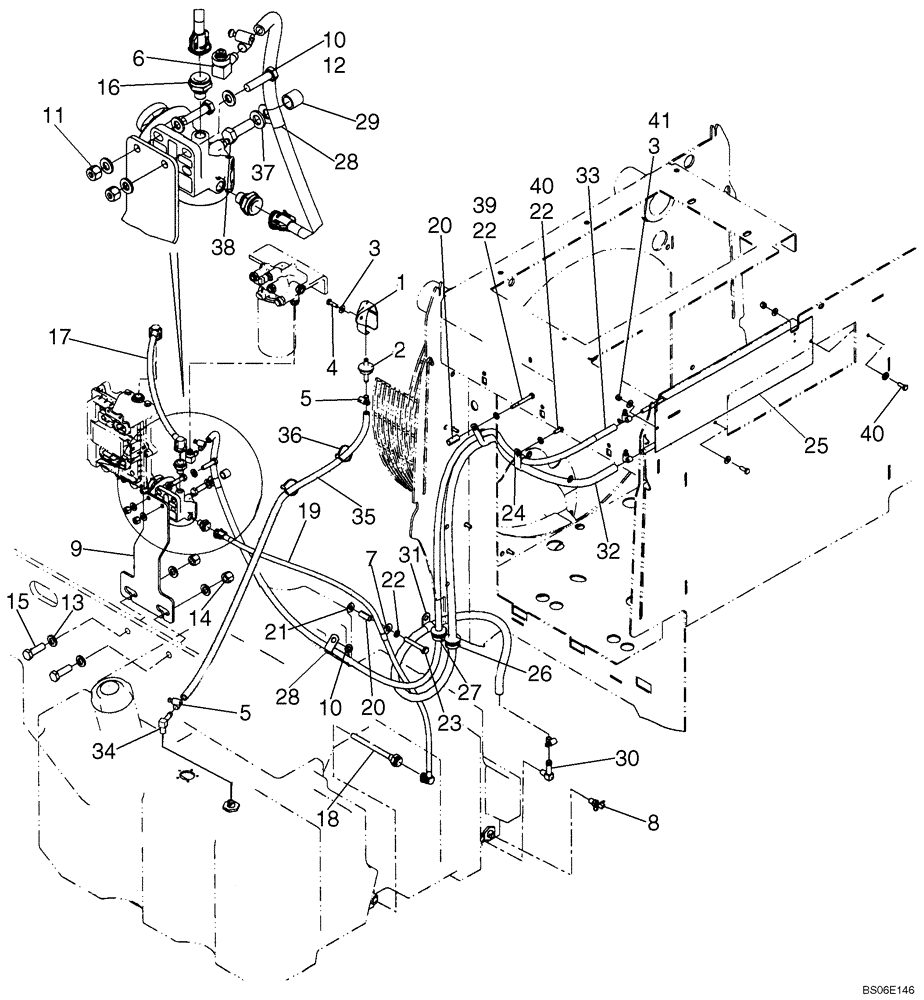

Запчасти Case 821E (03-01) - FUEL LINES - FILTER, IN-LINE FUEL (03) - FUEL SYSTEM

1

186814A1

CAP

1шт.

2

T103750

BREATHER

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

5

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

6

87400460

90 ELBOW

NG-8; Incl. Ref. 6A

1шт.

6a

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Not Illustrated

1шт.

7

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

8

217-92

COCK

1шт.

9

87323827

BRACKET

Prefilter

1шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

12

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

14

832-10416

NUT,M16 x 2, Cl 8

2шт.

15

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

16

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

246 NG12 to M14 x 1.5; Incl. 19

2шт.

17

87525374

TUBE,10 mm ID x 12.5 mm OD x 425 mm L

425 mm (16 3/4 in.); Prefilter to Engine

1шт.

18

8602537

TUBE,12mm OD x 171mm L

Tank Draw; 171mm (6 3/4 in.)

1шт.

19

8602538

PLASTIC-RUBBER TUBE,12.50 mm OD x 1300, 25 mm L

1350 mm (53 5/32); Tank To Prefilter

1шт.

20

L126936

SPACER

2шт.

21

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

22

892-11010

LOCK WASHER,M10

3шт.

23

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

24

L101181

CLAMP,0.75" D Clamping pipes x 2

2шт.

25

347615A3

FUEL COOLER

Fuel

1шт.

26

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

27

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

28

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

29

87307825

SPACER

1шт.

30

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

1шт.

31

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

32

87358040

FUEL HOSE,12.7mm ID x 2870mm L

Cooler To Tank, Bulk # 32-080T1

1шт.

33

87358043

FUEL HOSE

Engine To Cooler, Bulk # 32-012

1шт.

34

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

35

87549248

HOSE,9.50 mm ID x 1130.00 mm

Breather; Bulk # 32-012

1шт.

36

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

37

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

38

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

39

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

40

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

41

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
