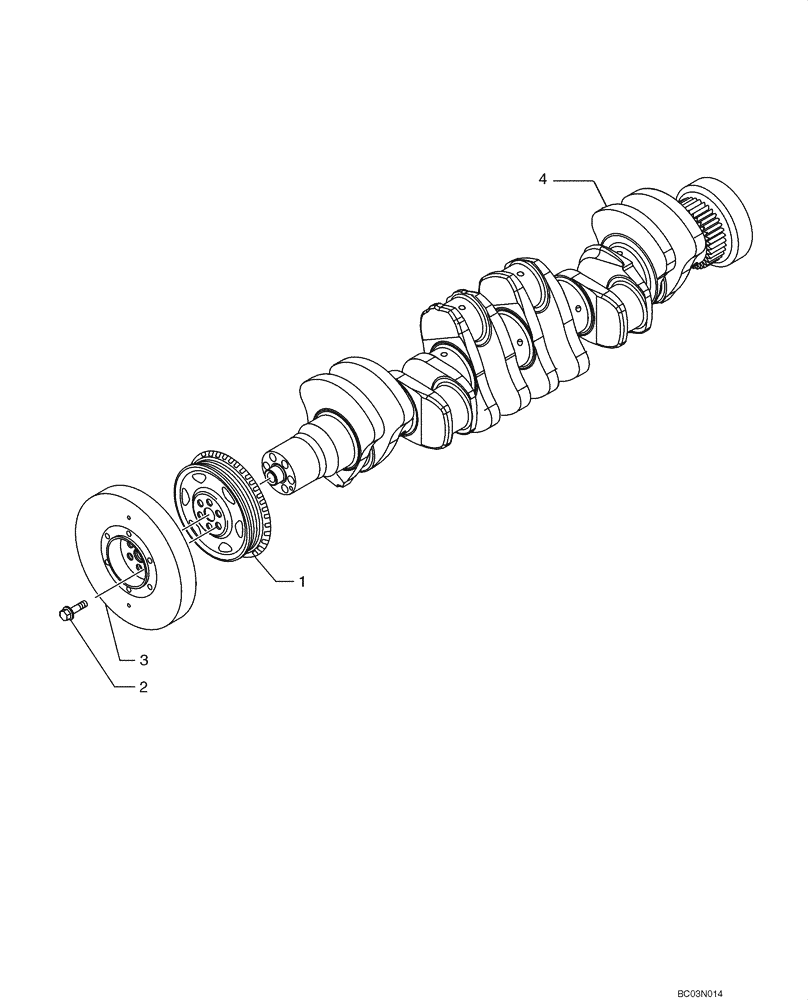

Запчасти Case 821E (02-34) - CRANKSHAFT - PULLEY (02) - ENGINE

1

4896773

PULLEY

1шт.

2

4892867

CAPTIVE WASHER SCREW,Phillips Drive, Oval HD, M12 x 1.25 x 78.5mm, Cl 10.9

6шт.

3

4892893

DAMPER,250mm OD

1шт.

4

REF

INSTRUCTION

CRANKSHAFT, See Figure 02-33

1шт.
