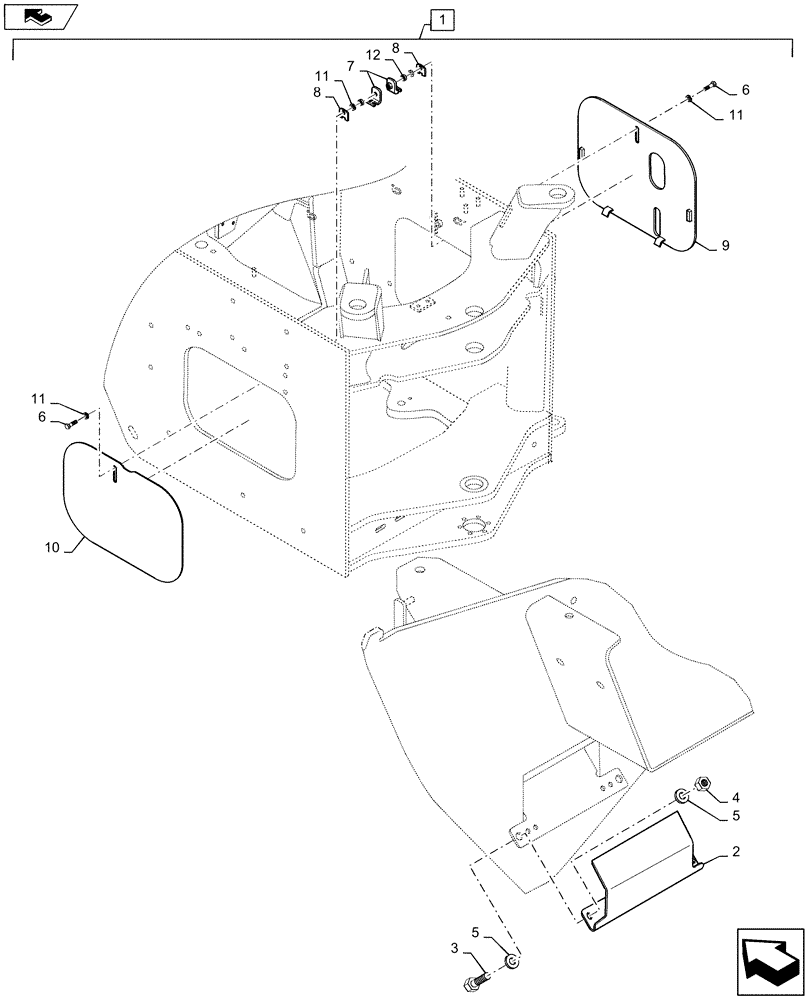

Запчасти Case 821E (88.088.01) - DIA KIT, FIELD SIDE COVERS - CASE (09) - CHASSIS

1

87548988

CONSTRUCTION DIA

Kit, Field Side Covers - Case, Incl 2 - 12

1шт.

2

407632A1

COVER

Riparo

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

7

87404138

CLAMP

Side Cover

2шт.

8

87404139

SHIM,13.5mm ID x 40mm OD x 3.8mm Thk

Plate

2шт.

9

87522255

COVER

W Left Side Case Power Tan

1шт.

10

87522259

COVER

W Right Side Case Power Tan

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Harden

4шт.

12

D35859

SPACER

2шт.
