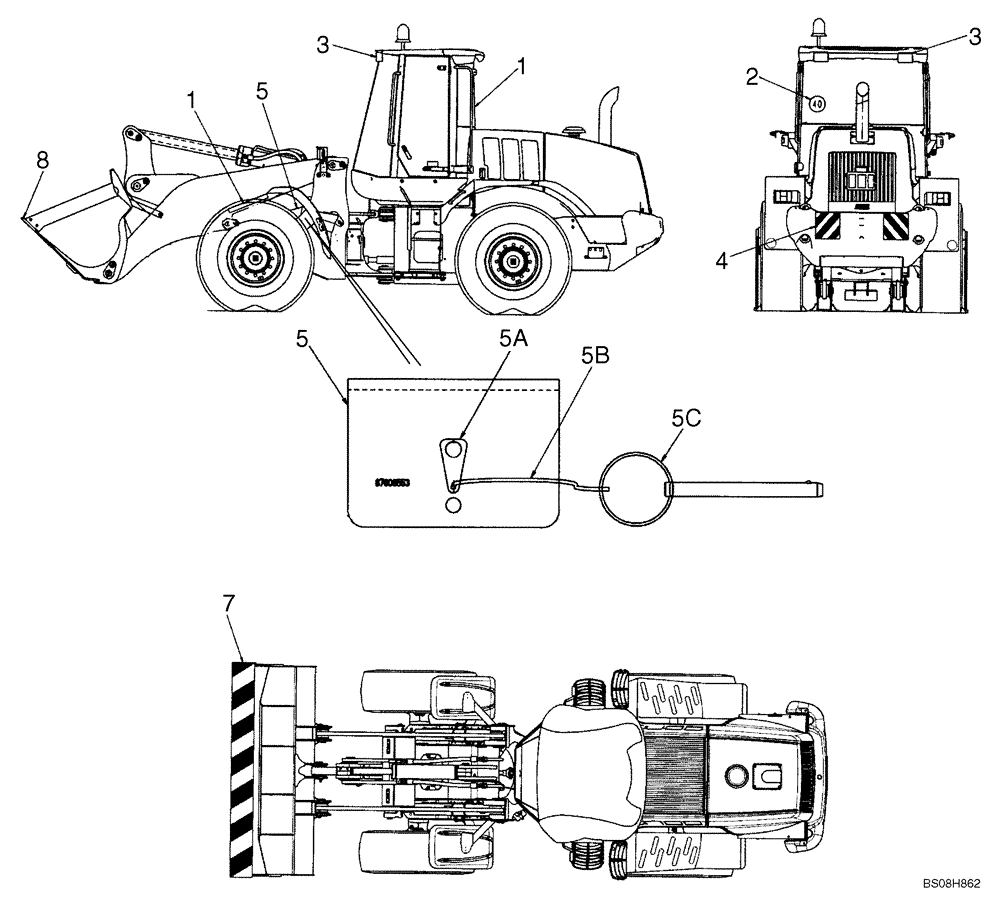

Запчасти Case 821E (09-88) - TRANSPORT OPTION - EUROPE - XR (09) - CHASSIS

1

195898A1

DECAL

Road Transport

2шт.

2

1532083C1

DECAL

Speed

1шт.

3

372421A1

COVER

Work Lights

4шт.

4

87593491

PANEL

Rear, Magnetic

2шт.

5

87608553

STOP

LOCK ASSY., Lift Cylinder; Incl. Refs. 5A - 5C

1шт.

5a

L300295

RETAINER

1шт.

5b

L303000

CHAIN (CE)

1шт.

5c

185166A1

PIN

PIN, Cylinder Lock

1шт.

7

79108115

DECAL

Bucket

1шт.

8

76036026

PANEL

Bucket

1шт.

9

87747625

BAR

Lock

1шт.

10

8287007

LOCK PIN,11.8mm x 94.6mm L

2шт.

11

76066712

SEAL,31mm ID x 50mm OD x 3mm Thk

2шт.

12

87639479

PIN

Lock Bar

2шт.

13

76034682

REFLECTOR

80 mm

2шт.
