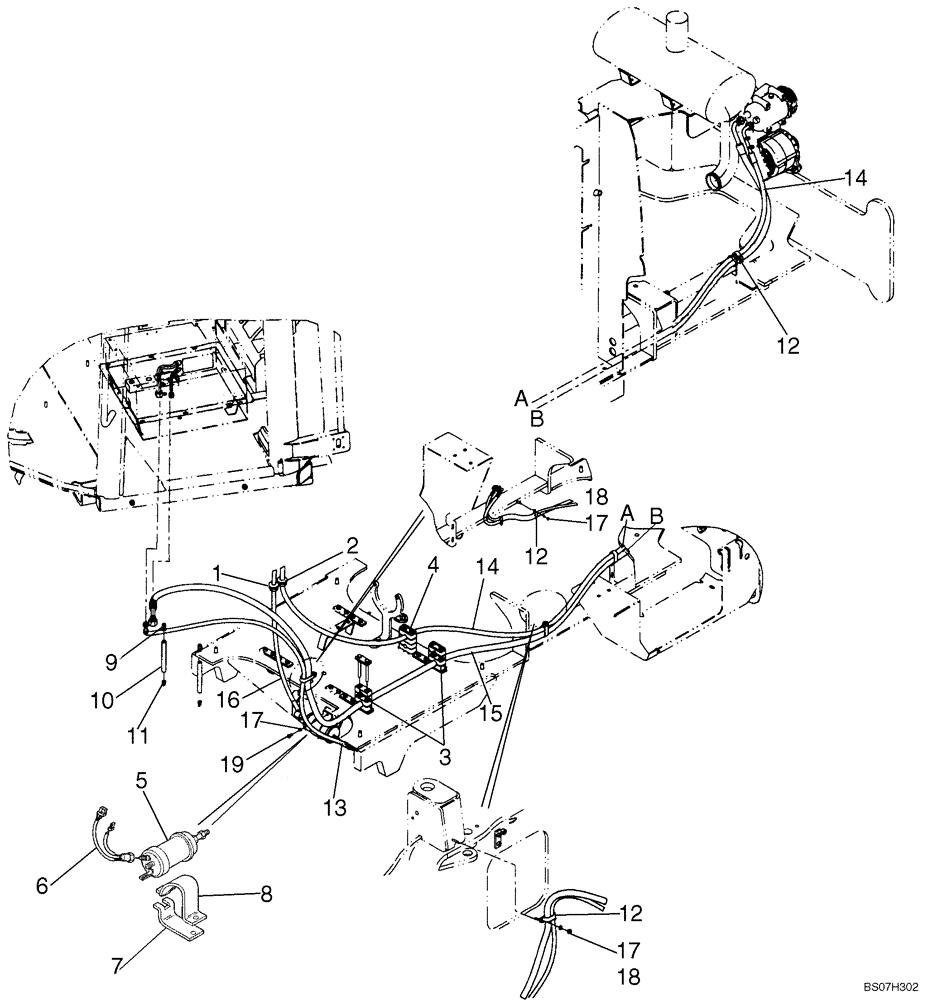

Запчасти Case 821E (09-77) - AIR CONDITIONING HOSES (09) - CHASSIS

1

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

2

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

3

367489A1

BLOCK

Mounting

2шт.

4

379374A1

BLOCK

Mounting

1шт.

5

76047001

RECEIVER-DRYER

A/C Dryer, has a place for the pressure switch on the dryer

1шт.

5

295006A1

RECEIVER-DRYER

A/C Dryer, does not have a place for the pressure switches on the dryer

1шт.

6

76047002

SENSOR

A/C

1шт.

7

76053044

CLAMP BRACKET

1шт.

8

76047004

BRACKET

1шт.

9

1250522C3

FITTING

Drain

2шт.

10

1977334C1

HOSE

610mm ( 24 in ); Cut From Bulk # 198091C2; Drain

2шт.

11

109239C2

CHECK VALVE

Drain

2шт.

12

31-1081

CLAMP

CLAMP, Double

3шт.

13

87524893

A/C HOSE

1640 mm ( 64-1/2in ); Receiver-Dryer To Cab; Incl. Ref. 13A

1шт.

13a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

Not Illustrated

1шт.

14

84191330

A/C HOSE

3725 mm (147 in); Compressor To Condensor; Incl. Refs. 14A, 14B

1шт.

14a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

90 Deg. Hose End; Not Illustrated

1шт.

14b

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

45 Deg. Hose End; Not Illustrated

1шт.

15

84191333

A/C HOSE

3715 mm (146 in); Cab To Compressor; Incl. Ref. 15A

1шт.

15a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

Not Illustrated

1шт.

16

FAR8602469

HOSE

ASSY. 2000 mm (79 in); Condensor To Dryer; Incl. Ref. 16A

1шт.

16a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

Not Illustrated

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

19

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.
