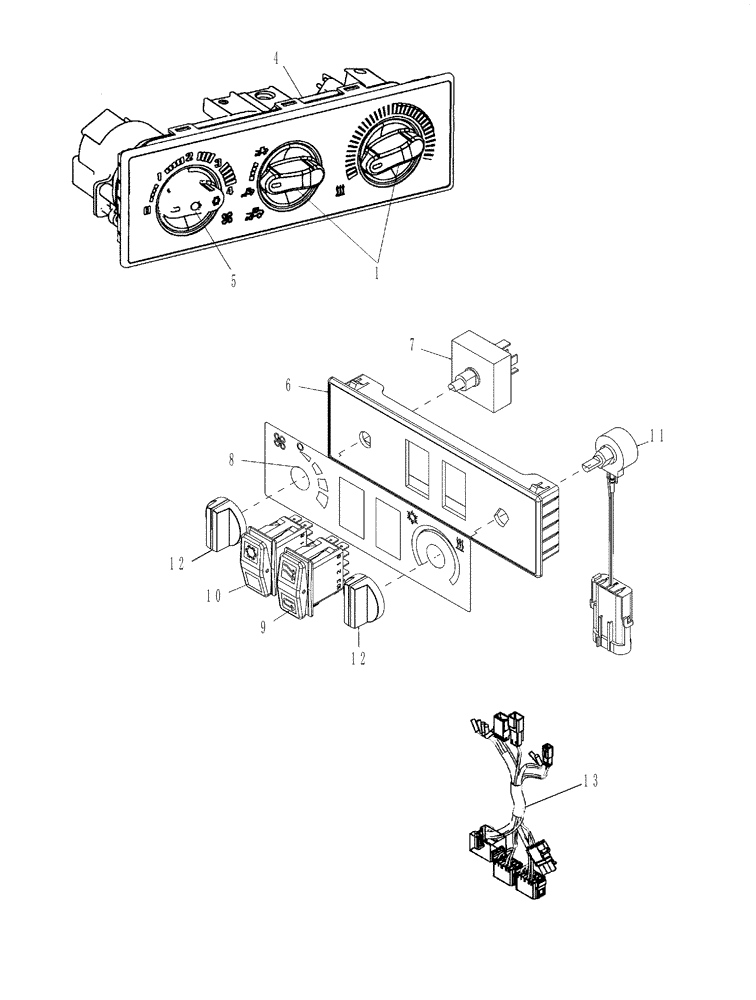

Запчасти Case 821E (09-75) - AIR CONDITIONING - CONTROL (09) - CHASSIS

87719515

CONTROL

Climate Control With A/C, Incl. Refs. 1 - 5; No Longer Available, Order 84169850 A/C Control and 84174426 Adaptor Harness, Ref. 13

1шт.

1

87529480

KNOB

Control

2шт.

87720200

SPRING

SPRING, Control Fixing, Not Illustrated

4шт.

4

NSS

NOT SOLD SEPARAT

BODY, CONTROL UNIT, No longer used, order control pn 87719515

1шт.

5

87529491

KNOB

A/C Control

1шт.

84169850

CONTROLLER

CONTROL, Climate Control With A/C, Incl. Refs. 6 - 12

1шт.

6

84169308

PANEL

Switch

1шт.

7

84169304

SWITCH

Blower

1шт.

8

84150190

DECAL

HVAC

1шт.

9

84146279

SWITCH

Recirculation

1шт.

10

84146280

SWITCH

A/C

1шт.

11

84169306

POTENTIOMETER,50,000 Ohm

Temperature Control

1шт.

12

1994720C1

KNOB

Control

2шт.

13

84180274

WIRE HARNESS

Controller Adaptor; If Used

1шт.
