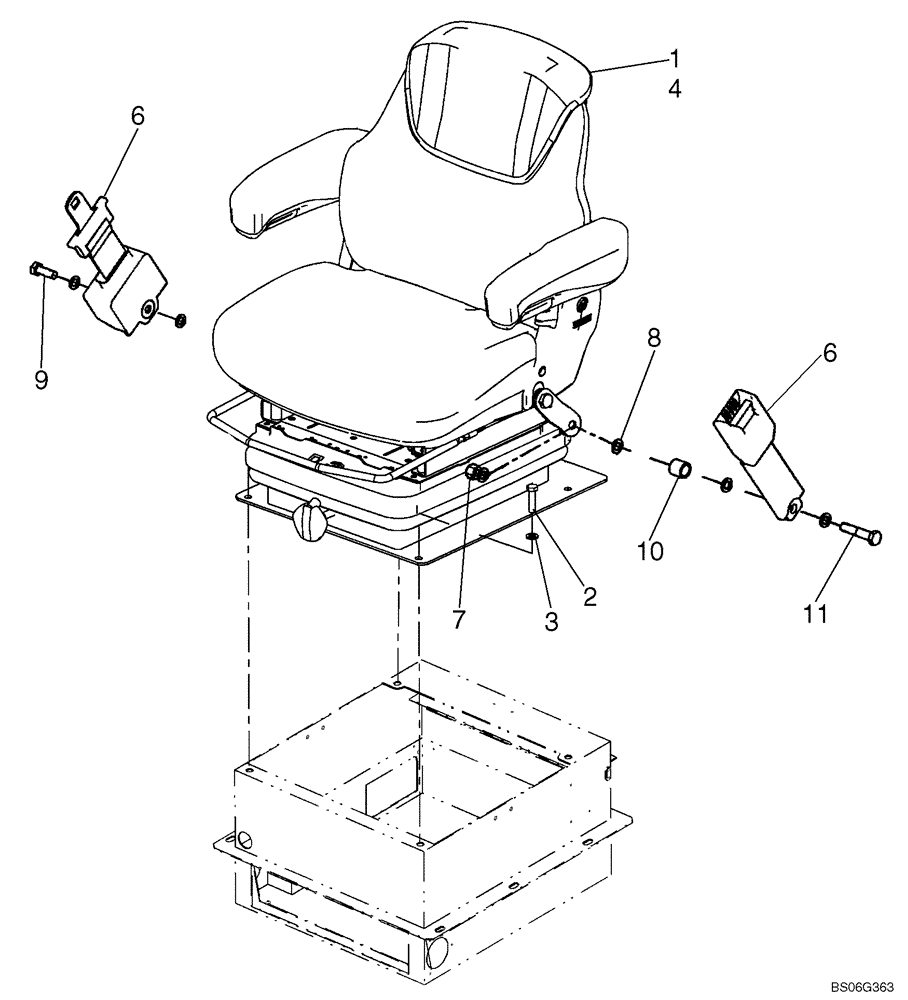

Запчасти Case 821E (09-38) - SEAT - MOUNTING/SEAT BELTS - EUROPE (09) - CHASSIS

1

87398039

SEAT ASSY.

Cloth; Mechanical Suspension; Use Ref 2, 3 To Mount; See Figures 09-39, 09-40

1шт.

2

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

87398040

SEAT ASSY.

Cloth; Air Suspension: Use Ref 2, 3 To Mount; See Figures 09-43, 09-44

1шт.

5

121412A1

FUSE,10A, Mini, Red

Air Suspension Seat Only; Not Illustrated

1шт.

REF

INSTRUCTION

SEAT BELT - EUROPE ONLY - 51 mm (2 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

6

345370A1

SAFETY BELT ,50.8mm W x 1219.2mm L

Uses Ref 18 - 22; Used In Europe Only; For 2" Seat Belt Used In North America, See Fig. 09-36

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

7шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

10

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

Black

1шт.

11

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.
