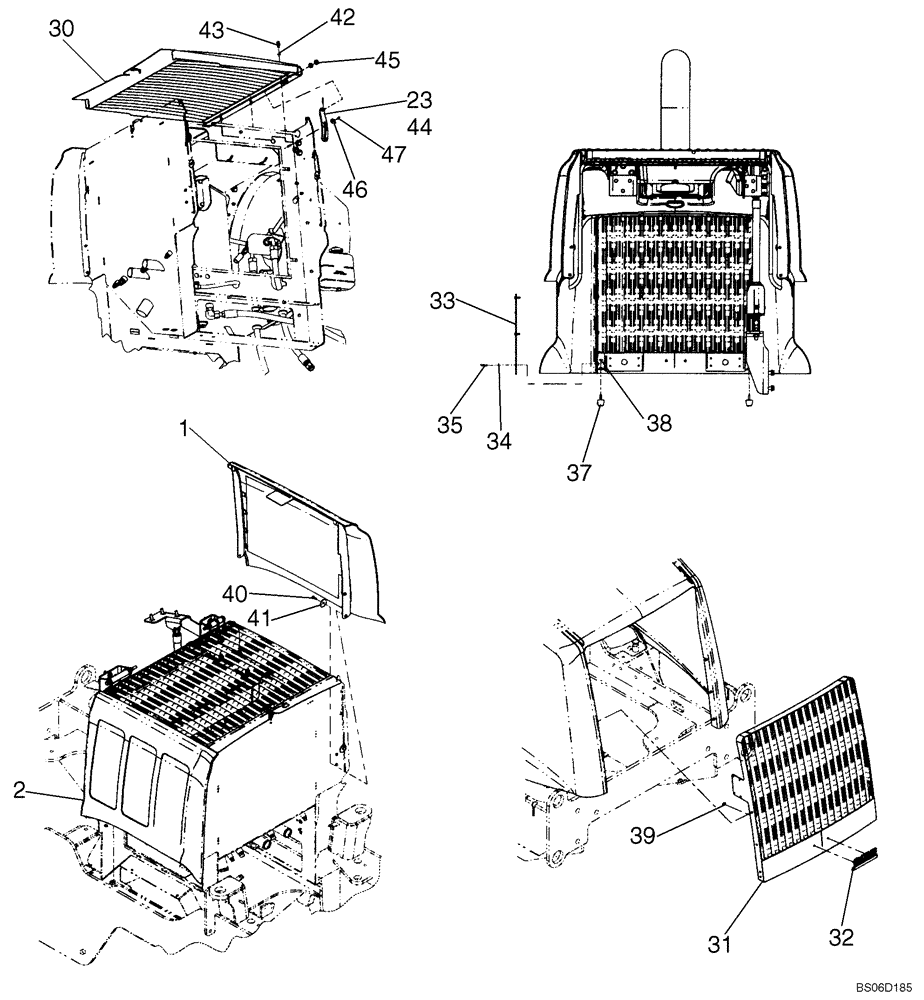

Запчасти Case 821E (09-30) - HOOD - EUROPE (09) - CHASSIS

REF

INSTRUCTION

EUROPE

1шт.

1

87308668

PANEL

Left Hand

1шт.

2

87308682

PANEL

Right Hand

1шт.

3

87323199

HOOD

Hood, Engine; Tan/Gray

1шт.

23

733-3220

COTTER PIN,M3.2 x 20

2шт.

30

87308388

SCREEN

Top

1шт.

31

87337946

GRILLE ASSY

European Models Only

1шт.

32

186989A1

EMBLEM

Case Emblem

1шт.

33

444931A1

PLATE

2шт.

34

892-11006

LOCK WASHER,M6

6шт.

35

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

37

N7673

BUMPER

2шт.

38

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

39

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

40

87021830

HEX SOC SCREW,M6 x 27.5mm, Cl 12.9

4шт.

41

495-81144

WASHER,0.41" ID x 1.75" OD x 0.06" Thk

6шт.

42

892-11008

LOCK WASHER,8mm ID

3шт.

43

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

44

8602476

PROP

1шт.

45

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

46

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

47

832-10406

NUT,M6 x 1, Cl 8

1шт.
