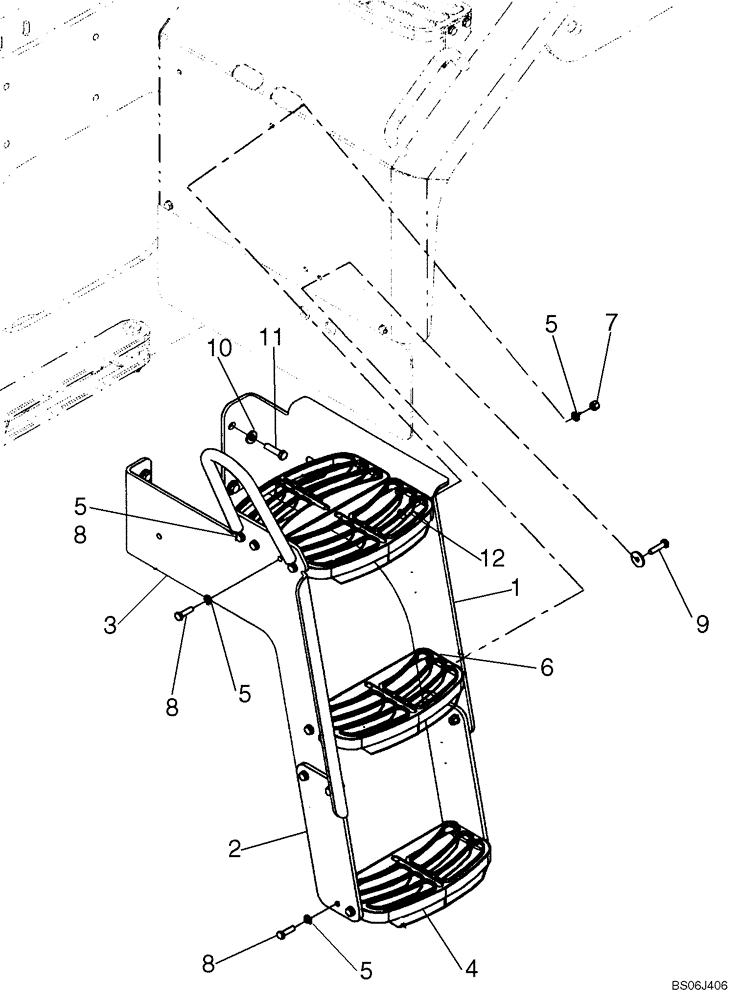

Запчасти Case 821E (09-25) - FENDERS, REAR - STEPS - LEFT (09) - CHASSIS

1

87569015

BRACKET

LH Step Support; Wide Rear; Tan

1шт.

1

84194970

BRACKET

LH Step Support; Narrow Rear; Tan

1шт.

2

87434096

STRAP

Lower

2шт.

3

87569014

BRACKET

LH Step Support; Front; Tan

1шт.

4

87434472

STEP

Tan

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

40шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

22шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

21шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

11

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

12

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

1шт.
