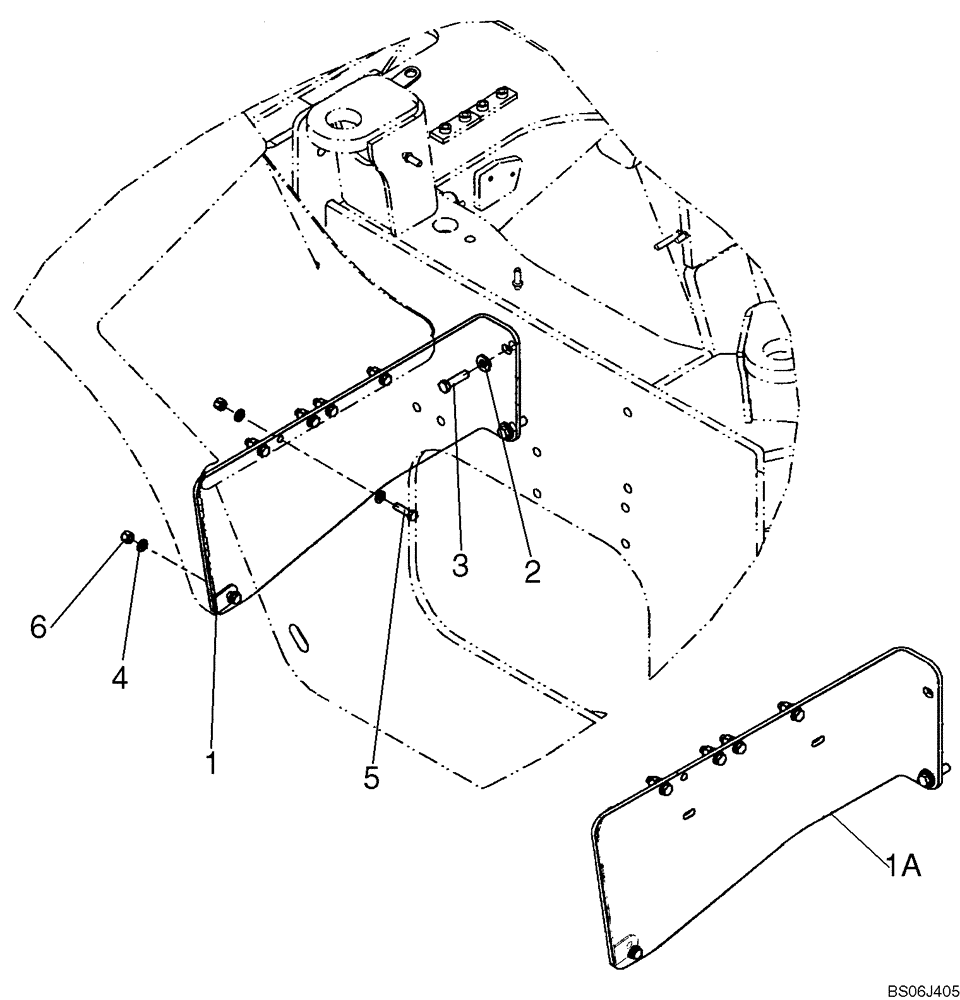

Запчасти Case 821E (09-21) - FENDERS, REAR - SUPPORT (09) - CHASSIS

1

87343686

BRACKET, SUPPORTING

SUPPORT RH Rear, If Used

1шт.

1a

87573254

BRACKET

RH Rear, If Used

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

3

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
