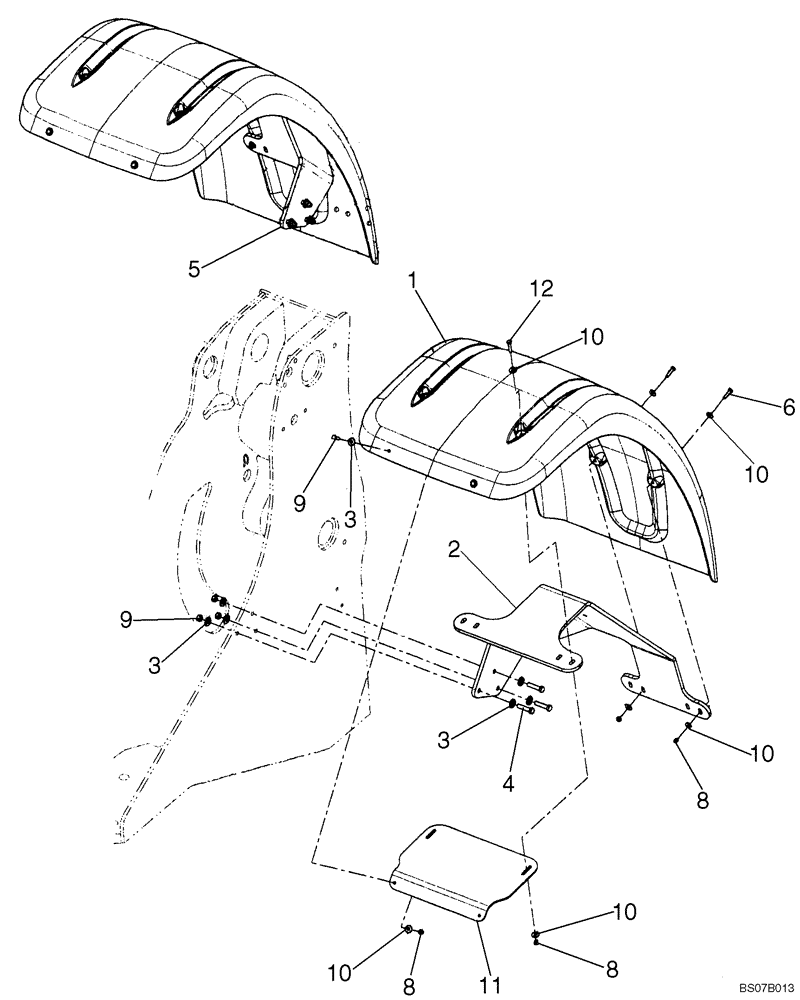

Запчасти Case 821E (09-17) - FENDERS, FRONT - WIDE - BSN N8F203749 (09) - CHASSIS

NORTH AMERICA AND EUROPE

1шт.

1

87610930

FRONT FENDER

Replaces 87331714

2шт.

2

87331712

BRACKET

Fender, Wide; LH

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

12шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

5

87331713

BRACKET

Fender, Wide; RH

1шт.

6

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4-6шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

8-12шт.

9

829-1412

NUT,M12, Cl 10.9

6шт.

10

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

Replaces 896-25008 Washer

8-24шт.

11

87621742

BRACKET

Fender, Wide; If Used

2шт.

12

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

13

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
