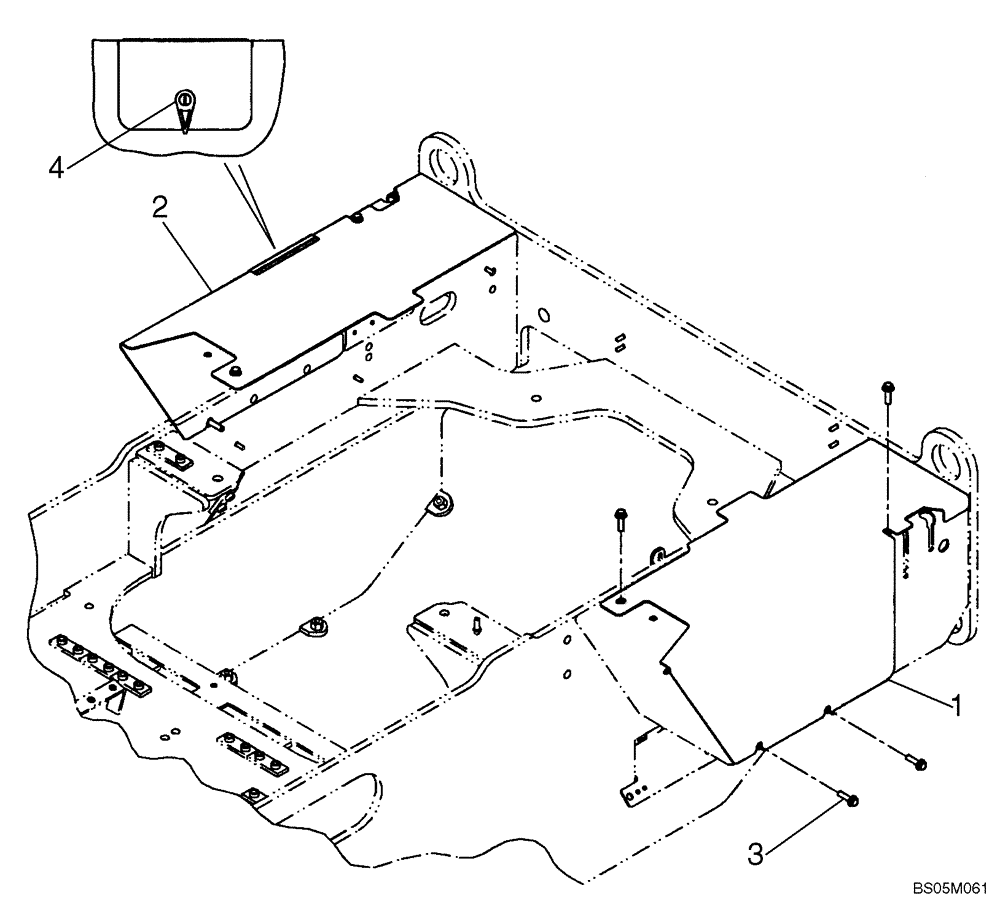

Запчасти Case 821E (09-16) - COVERS - BATTERY BOX - EUROPE (09) - CHASSIS

REF

INSTRUCTION

EUROPE

1шт.

1

87749236

COVER

Battery Box; Left Side; Replaces 87330863, 87585839

1шт.

2

87749235

COVER

Battery Box; Right Side, Replaces 87330863, 87585838

1шт.

3

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

8шт.

4

8602791

LOCK

1шт.
