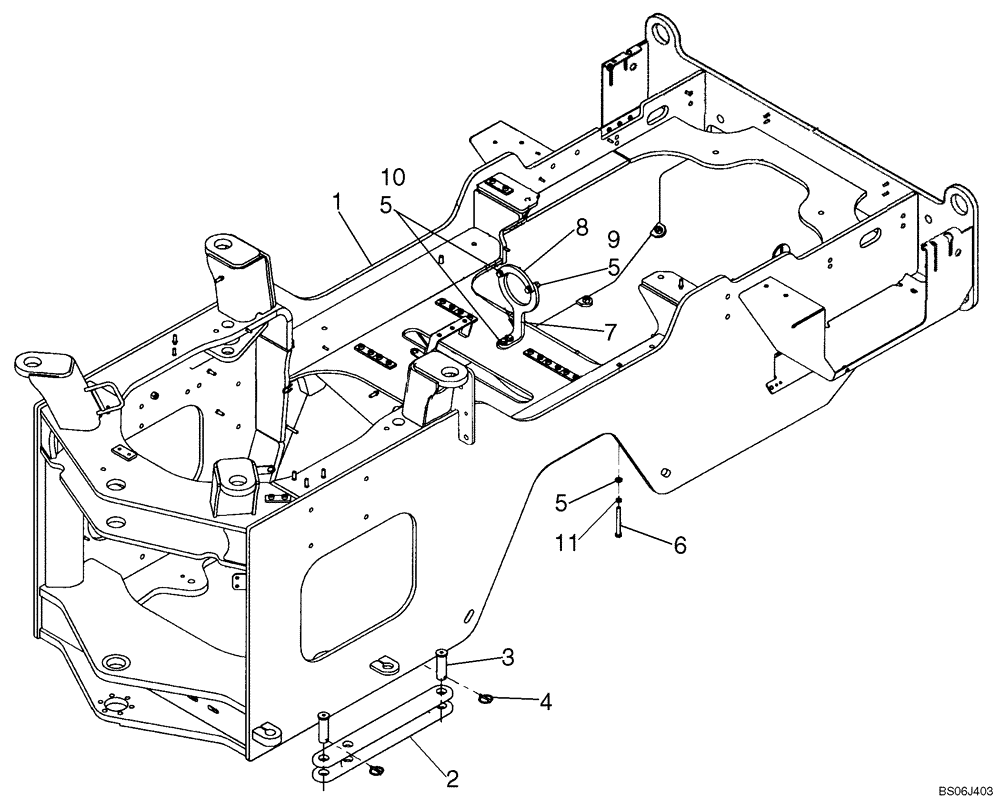

Запчасти Case 821E (09-13) - FRAME, REAR (09) - CHASSIS

1

84139977

FRAME

FRAME, Rear, Replaces 87352274, 87577824, 87482253

1шт.

2

412067A1

LOCKING BAR

Transport And Service

1шт.

3

126268A1

PIN,31.8mm OD x 108mm L

Articulation Lock

2шт.

4

A30338

PIN

2шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

6

827-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

4шт.

7

87333864

GUARD

Drive Shaft

1шт.

8

87333866

GUARD

Drive Shaft

1шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

11

892-11012

LOCK WASHER,M12

4шт.
