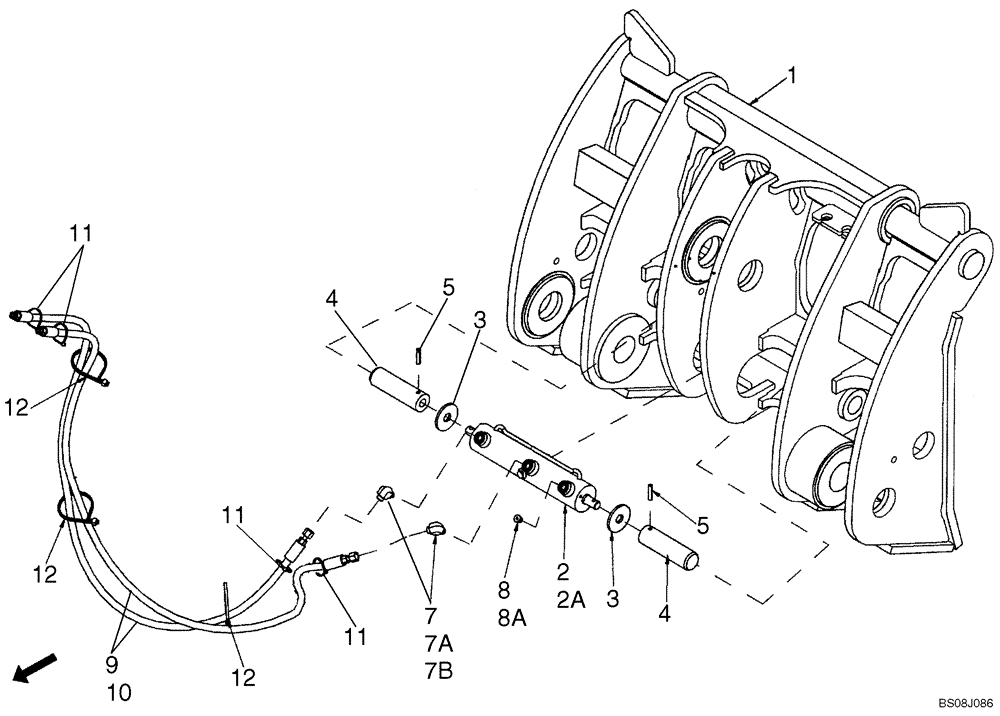

Запчасти Case 821E (09-11) - COUPLER, HYDRAULIC - Z-BAR - CNH (09) - CHASSIS

1

87741072

FRAME

COUPLER, Z-Bar

1шт.

2

84139131

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 206.5mm Stroke

Coupler; Incl. Ref. 2A

1шт.

2a

87741101

SEAL KIT

Hydraulic Coupler Cylinder

1шт.

3

87741104

INDICATOR

Coupler, Red

2шт.

4

87741099

SPECIAL PIN,50.8mm OD x 173mm L

Coupler Pin

2шт.

5

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

7

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl. Refs. 7A, 7B

2шт.

7a

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7b

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

8

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. Ref. 8A

1шт.

8a

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

9

47112456

SLEEVE

Nylon

2шт.

10

87741087

HOSE ASSY.

Z-Bar Coupler; 2032 mm (80 in)

2шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

12

86566989

CABLE TIE,208mm L

CABLE STRAP

4шт.
