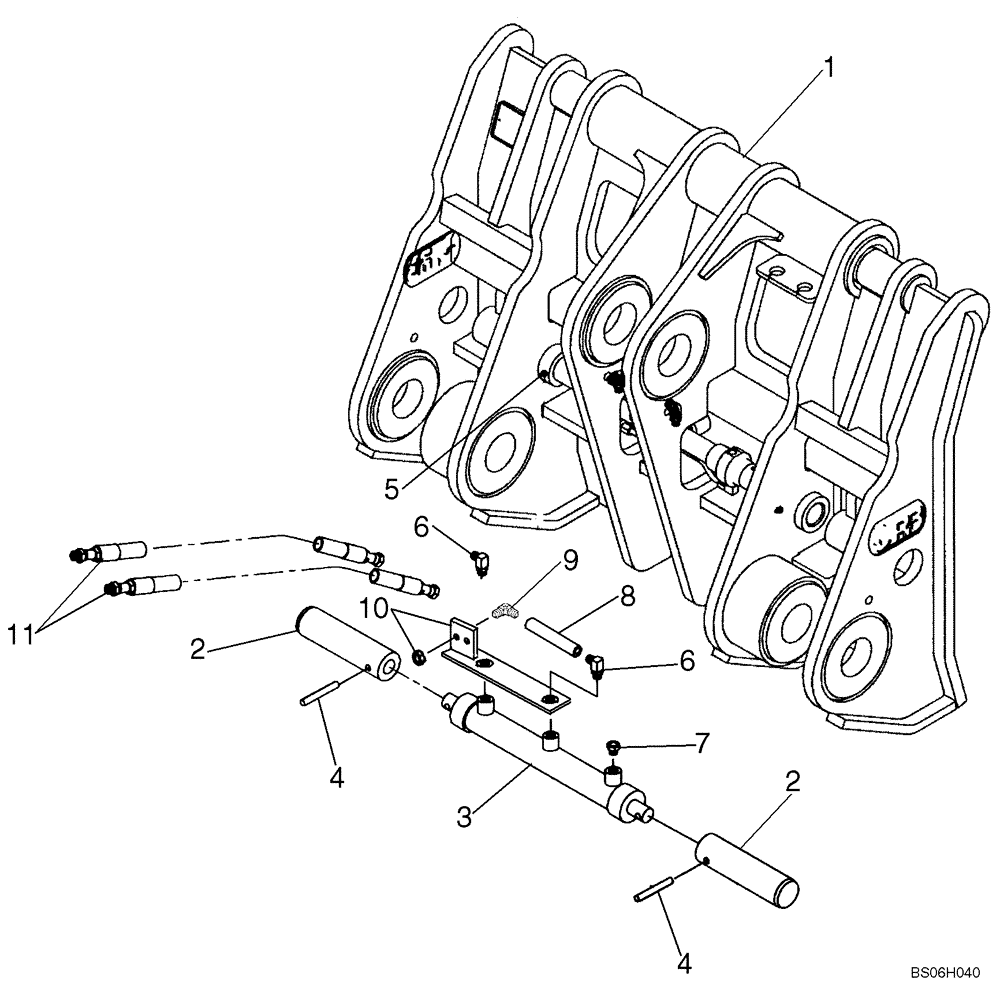

Запчасти Case 821E (09-10) - COUPLER, HYDRAULIC - Z-BAR - JRB (09) - CHASSIS

REF

INSTRUCTION

SEE YOUR NEAREST JRB DEALER FOR SERVICE PARTS

1шт.

NSS

NOT SOLD SEPARAT

COUPLER ASSEMBLY WITH KIT; JRB; Z-BAR; Vendor Part Number; 90A3224

1шт.

1

REF

INSTRUCTION

COUPLER WELDMENT, Vendor Part Number D22756

1шт.

REF

INSTRUCTION

HYDRAULIC ASSY. Vendor Part Number 96A0127, Incl. Refs. 2-11

1шт.

2

REF

INSTRUCTION

PLUNGER, Vendor Part Number A23321

2шт.

3

REF

INSTRUCTION

HYDRAULIC CYLINDER, Vendor Part Number B30600

1шт.

4

REF

INSTRUCTION

ROLL PIN, Vendor Part Number 124038000175

2шт.

5

REF

INSTRUCTION

GREASE FITTING, Vendor Part Number A31294-1

2шт.

6

REF

INSTRUCTION

ELBOW, Vendor Part Number 46055-02

2шт.

7

REF

INSTRUCTION

HEX PLUG, Vendor Part Number 46154-05

1шт.

8

REF

INSTRUCTION

HYDRAULIC TUBING ASSY. Vendor Part Number A36767

1шт.

9

REF

INSTRUCTION

FITTING, WELOS, Vendor Part Number 46143-02

1шт.

10

REF

INSTRUCTION

TUBE SUPPORT ASSY. Vendor Part Number A32721

1шт.

11

REF

INSTRUCTION

HOSE ASSY. Vendor Part Number 570046-80

1шт.
