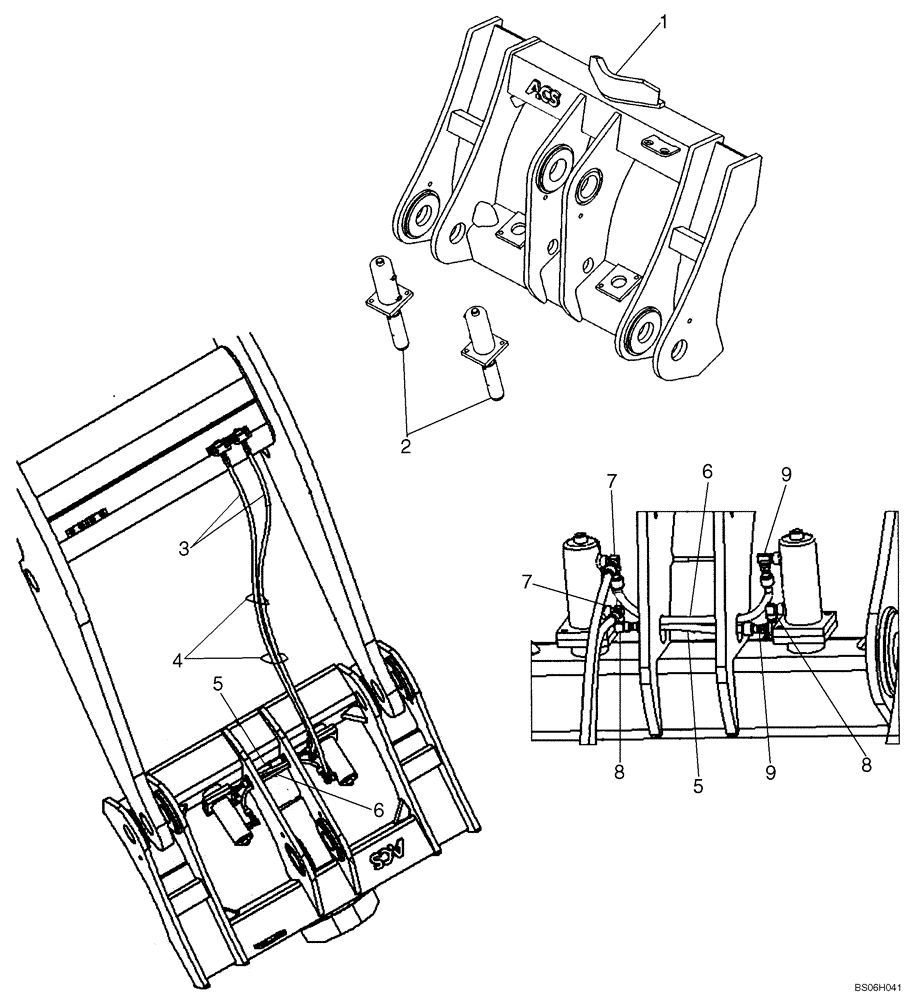

Запчасти Case 821E (09-09) - COUPLER, HYDRAULIC - Z-BAR - ACS (09) - CHASSIS

REF

INSTRUCTION

SEE YOUR NEAREST ACS PRO 2000 DEALER FOR SERVICE PARTS

1шт.

NSS

NOT SOLD SEPARAT

COUPLER ACS Pro 2000 60HD

1шт.

1

REF

INSTRUCTION

WELDMENT, Vendor P/N 15027531

1шт.

2

REF

INSTRUCTION

CYLINDER & PIN KIT, Vendor P/N 65595565

1шт.

3

REF

INSTRUCTION

HOSE ASSY, Vendor P/N 54001637

2шт.

4

REF

INSTRUCTION

WIRE TIE, Vendor P/N 62640051

4шт.

5

REF

INSTRUCTION

HOSE ASSY, Vendor P/N 54830114

1шт.

6

REF

INSTRUCTION

HOSE ASSY, Vendor P/N 54830155

1шт.

7

REF

INSTRUCTION

TEE, Vendor P/N 52800539

2шт.

8

REF

INSTRUCTION

ELBOW, Vendor P/N 52800593

2шт.

9

REF

INSTRUCTION

ELBOW, Vendor P/N 52800553

2шт.
