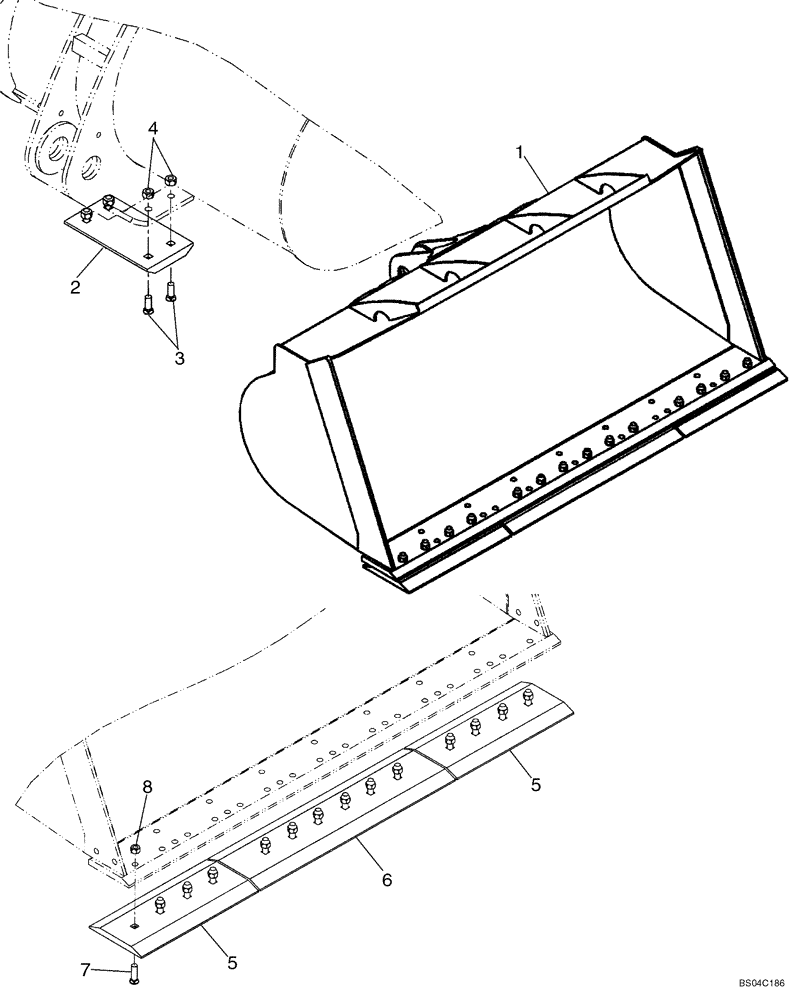

Запчасти Case 821E (09-07) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS (09) - CHASSIS

1

87386812

BUCKET

BUCKET/A;3.4 Cubic Meter (4.5 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8

1шт.

1

87386778

BUCKET

BUCKET/A; 3.25 Cubic Meter ( 4.25 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8

1шт.

1

87386743

BUCKET

BUCKET/A; 2.7 Cubic Meter ( 3.5 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8

1шт.

1a

REF

INSTRUCTION

BUCKET/A, 87390415; JRB COUPLER; 2.7 Cubic Meter ( 3.5 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8; Not Illustrated

1шт.

1a

REF

INSTRUCTION

BUCKET/A, 87390442; ACS COUPLER; 2.7 Cubic Meter ( 3.5 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8; Not Illustrated

1шт.

1a

REF

INSTRUCTION

BUCKET/A, 87728755; CNH COUPLER; 2.7 Cubic Meter ( 3.5 Cubic Yards ); Order From Whole Goods; Inc. 2 - 8; Not Illustrated

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

8500180

SKID PLATE

Bottom; Bolt On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

REF

INSTRUCTION

BOLT ON CUTTING EDGES

1шт.

5

87306795

CUTTING EDGE,Bolt On, 4 Hole, 323.18mm W x 816mm L

Outer; Bolt On

2шт.

6

87306796

CUTTING EDGE,Bolt On, 6 Hole, 323.18mm W x 1377.8mm L

Center; Bolt On

1шт.

7

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

14шт.

8

329-1016

NUT,1"-8, G8

14шт.

9

87306133

CUTTING EDGE

Weld On

1шт.
