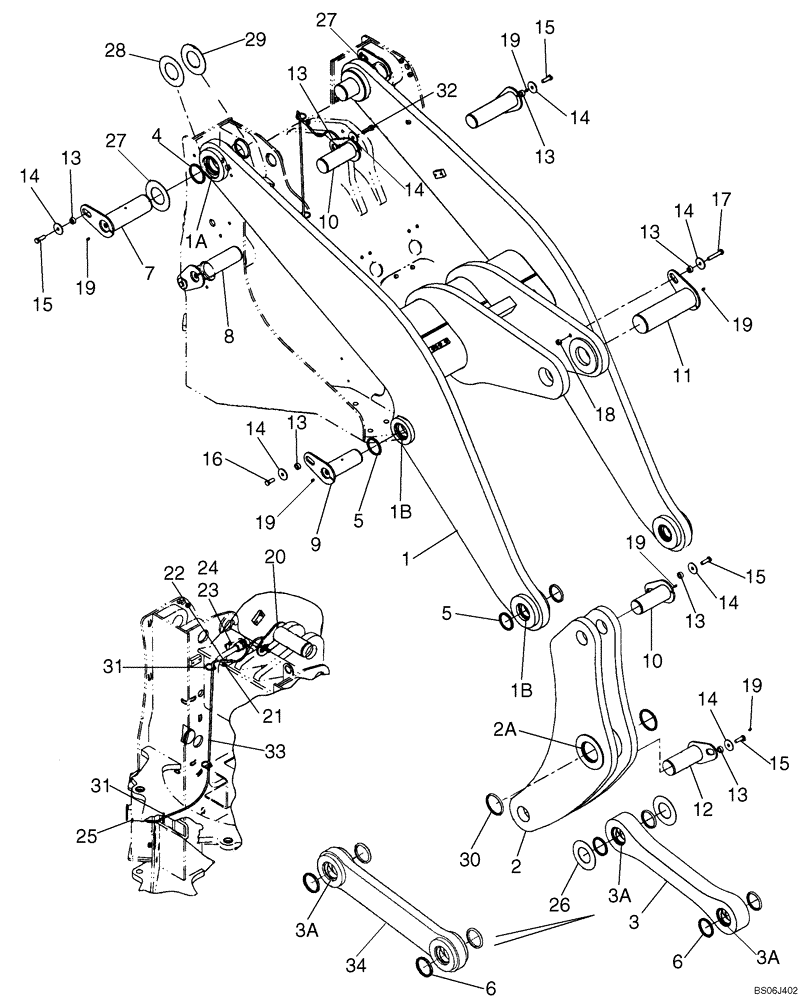

Запчасти Case 821E (09-04) - FRAME - LOADER LIFT (Z BAR LOADER) (09) - CHASSIS

1

87378056

LIFT ARM

Tan; Incl. Ref. 1A, 1B

1шт.

1a

87613437

BUSHING,95.57mm ID x 111.23mm OD x 79mm L

Lift Arm; Replaces 87308478

2шт.

1b

87613433

BUSHING,82.86mm ID x 98.53mm OD x 79mm L

Lift Arm; Replaces 441952A1

4шт.

2

87305879

BELLCRANK

Incl. Ref. 2A

1шт.

2a

87613438

BUSHING,108.27mm ID x 123.93mm OD x 84.8mm L

Bellcrank; Replaces 87308526

2шт.

3

87305920

LINK ASSY.

Incl. Ref. 3A, If Used

1шт.

3a

87613434

BUSHING,89.22mm ID x 104.88mm OD x 79mm L

Dump Link; Replaces 442153A1

2шт.

4

86982500

SEAL,95.12mm ID x 111.15mm OD x 9.77mm Thk

95.3 mm

4шт.

5

365523A1

WIPER SEAL

82.5 mm

8шт.

6

S92653

WIPER

88.9 mm

4шт.

7

87308438

PIN

Lift Arm; Zinc Plated

2шт.

8

87308899

PIN

Lift Cylinder; Chassis; Zinc Plated

2шт.

9

87308951

PIN,82.5mm OD x 230mm L

Lift Cylinder; Arm; Zinc Plated

2шт.

10

87308973

PIN

Tilt Cylinder; Zinc Plated

2шт.

10

87516014

HEADED PIN,82.55mm OD x 214mm L

Tilt Cylinder; Chrome Plated, Heavy Duty

2шт.

11

87308504

PIN,107.95mm OD x 375.5mm L

Bellcrank; Zinc Plated

1шт.

12

87308980

AXLE PIN

Dump Link; Zinc Plated

1шт.

12

87516018

HEADED PIN,88.9mm OD x 210mm L

Dump Link; Chrome Plated, Heavy Duty

1шт.

13

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

14

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

15

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

16

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

17

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

18

832-10416

NUT,M16 x 2, Cl 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

20

328082A1

ELBOW

1/8 PT

1шт.

21

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

22

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

25

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

26

442157A1

WASHER

90.3mm ID; Hardened, If Used

1шт.

27

105917A1

WASHER,98mm ID x 176mm OD x 3.5mm Thk

1шт.

28

87308470

WASHER

96.7 ID; 1.6mm; Hardened

1шт.

29

87308469

WASHER

96.7 ID; 2.5mm; Hardened

1шт.

30

87308559

SEAL

107.95

2шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

32

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

33

318012A1

FLEXIBLE HOSE

1785 mm ( 70-1/4 in ); Grease

1шт.

34

87575808

LIFT LINK,900.1mm L

Incl. Ref. 3A, If Used

1шт.
