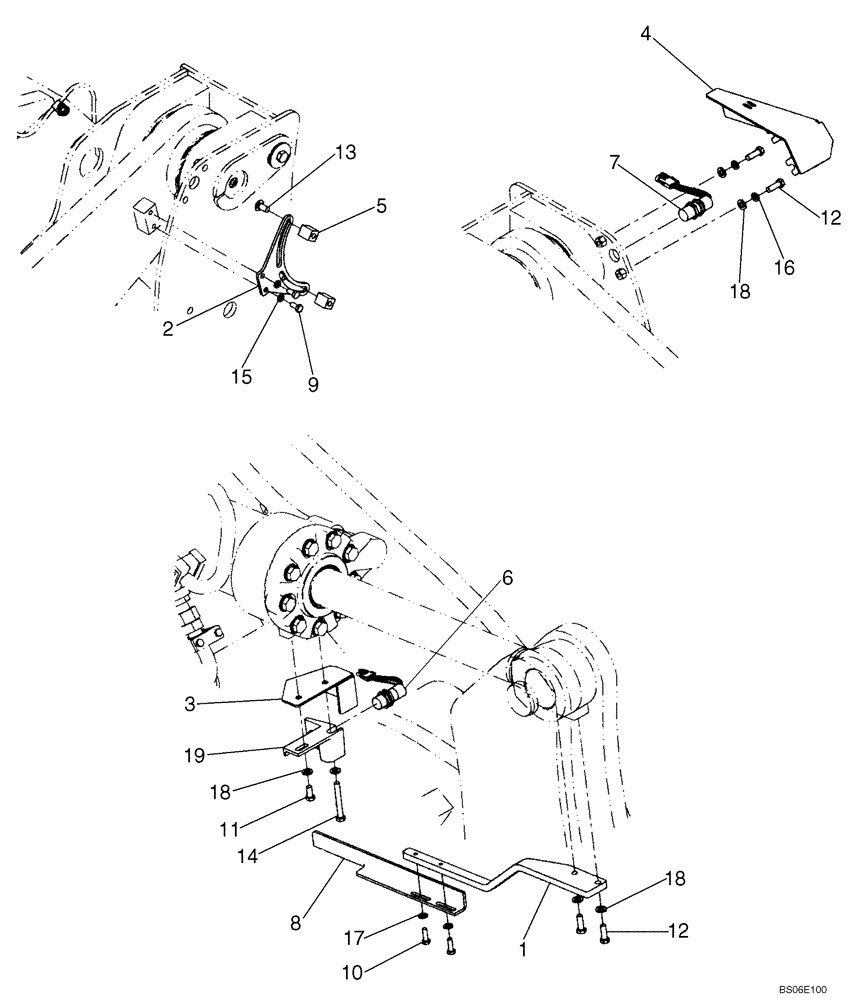

Запчасти Case 821E (09-01) - CONTROL - RTD-RTT-HGT (Z BAR LOADER) (09) - CHASSIS

1

87345100

BRACKET

Return To Dig

1шт.

2

87345327

PLATE

Target

1шт.

3

87403966

COVER

Proximity Switch

1шт.

4

87430084

COVER

Proximity Switch

1шт.

5

87437102

BLOCK

Proximity Switch

2шт.

6

1546497C1

SWITCH

Proximity

2шт.

7

1546498C1

SWITCH

Proximity

2шт.

8

443541A1

BRACKET

Target RTD

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

11

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

13

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

14

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

15

892-11010

LOCK WASHER,M10

2шт.

16

892-11012

LOCK WASHER,M12

2шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

19

L125983

SUPPORT

Proximity Switch

1шт.
