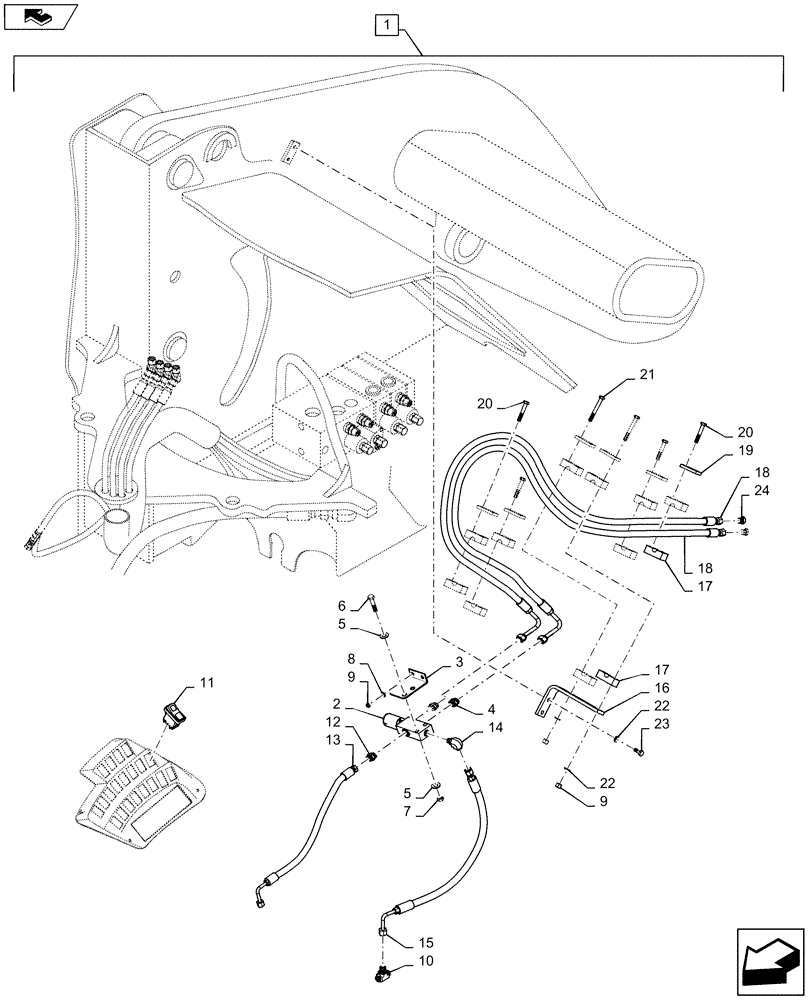

Запчасти Case 821E (88.035.02) - DIA KIT, FIELD LOCKING HYDRAULICS (08) - HYDRAULICS

1

87548986

CONSTRUCTION DIA

Kit, Field Locking Hydraulics, Incl 2 - 24

1шт.

2

84139102

SOLENOID VALVE

1шт.

3

87346053

BRACKET

Coupler Solenoid

1шт.

4

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

2шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

ZND

4шт.

6

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

ZND

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

10

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

11

364444A2

SWITCH

Pin Engage, Interruttore, Vapor Tight

1шт.

12

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

13

87346060

HOSE ASSY.

Coupler Pressure

1шт.

14

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

15

87346058

HOSE ASSY.

Coupler Pressure

1шт.

16

373040A2

BRACKET

Hose Clamp, Support, Piping

1шт.

17

379374A1

BLOCK

Tube Mounting, Pipes

6шт.

18

87346057

HOSE ASSY.

Z - Bar Coupler

2шт.

19

367658A1

PLATE

Clamp Cover

6шт.

20

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

8шт.

21

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

24

701-911

PLUG,Hex, 11/16" - 16 ORFS

2шт.
