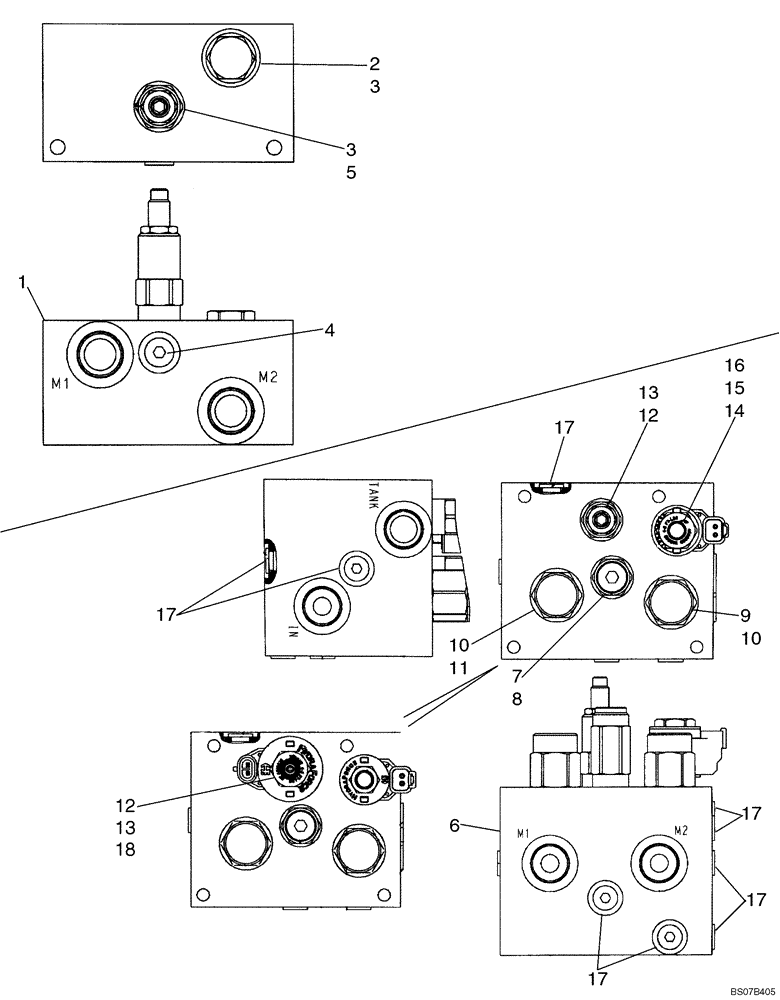

Запчасти Case 821E (08-33) - VALVE ASSY - COOLING SYSTEM (08) - HYDRAULICS

REF

INSTRUCTION

FAN RELIEF VALVE

1шт.

1

8500562

HYDRAULIC VALVE

Fan Relief; Incl. 2 - 5

1шт.

2

8605073

VALVE, CHECK

Incl. 3

1шт.

3

1542830C2

SEAL KIT

1шт.

4

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

5

8605070

VALVE PRESSURE RELIE

Pilot Operated; Incl. 3

1шт.

REF

INSTRUCTION

FAN REVERSER VALVE, BOTTOM ILLUSTRATION, IF USED

1шт.

6

8500565

HYDRAULIC VALVE

Fan Reverser; Incl. 7 - 17

1шт.

7

8605053

VALVE PRESSURE RELIE

Incl. 8

1шт.

8

1542833C1

SEAL KIT

1шт.

9

8605056

PILOT VALVE

Directional; Incl. 10

1шт.

10

388744A1

SEAL KIT

Seal; Includes (4) O-Rings and (6) Back-Up Rings

1шт.

11

8605059

PILOT VALVE

Directional; Incl. 10

1шт.

12

8605062

SOLENOID VALVE

EF Pilot Operated Relief; Incl. 13

1шт.

13

1542830C2

SEAL KIT

1шт.

14

8605066

VALVE PRESSURE RELIE

Solenoid Cartridge; Incl. 14A

1шт.

14a

329483A1

SEAL KIT

Not Illustrated

1шт.

15

87617168

SEAL KIT

Includes (3) O-Rings and (4) Back-Up Rings

1шт.

16

87617170

COIL

Electronic; Replaces 8605069

1шт.

17

218-5209

PLUG,Hex, 9/16"-18 ORB

9шт.

18

87617169

COIL

If Used

1шт.
