Артикул
Название
Примечание
Количество
REF
INSTRUCTION

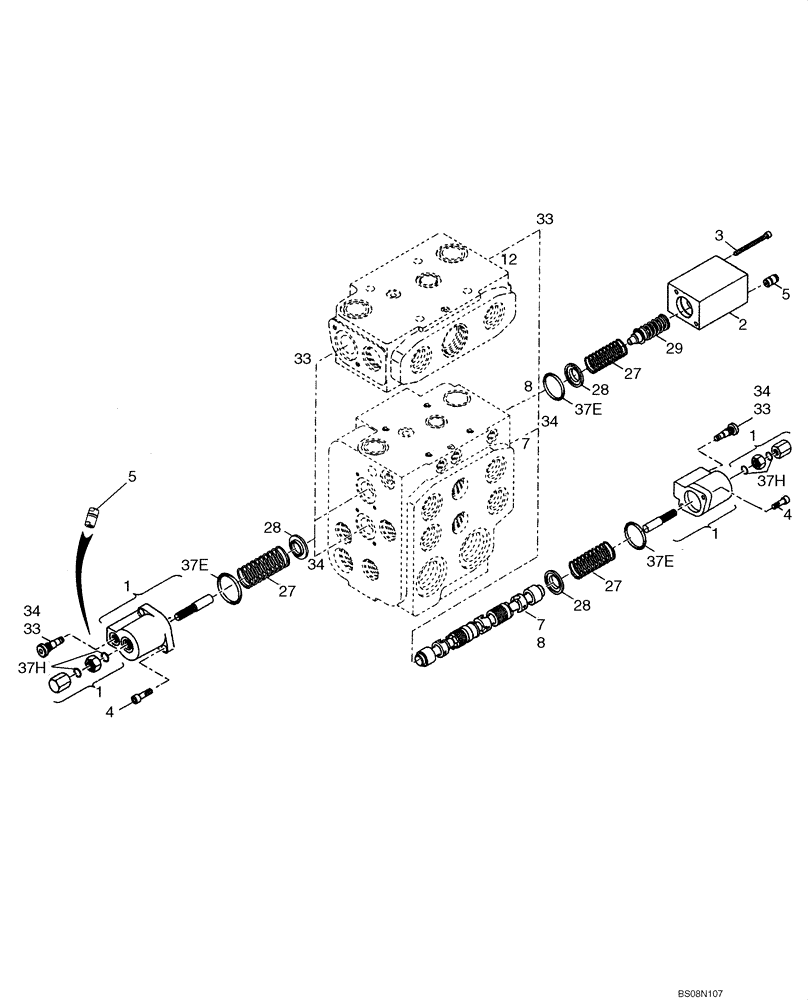

M6-20 TWO, THREE, AND FOUR SPOOL VALVE;Z-BAR; IF USED
1шт.
87539283
VALVE
Four Spool; Incl. 1 - 37; Also Includes Parts On Figure 08-31
1шт.
87539282
VALVE
Three Spool; Incl. 1 - 37; Also Includes Parts On 08-31
1шт.
87539278
VALVE
Two Spool; Incl. 1 - 37; Also Includes Parts On 08-31
1шт.
1
8602890
COVER
Component Parts Not Serviced Separately
7шт.
2
87311762
COVER
Component Parts Not Serviced Separately
1шт.
3
8602892
HEX SOC SCREW,M6 x 105mm
Hex Socket; M6 x 105
2шт.
4
962-6016
HEX SOC SCREW,M6 x 16mm, Cl 10.9
14шт.
5
8604578
CHECK VALVE
1-2шт.
7
87347209
SPOOL
Lift
1шт.
8
87347210
SPOOL
Tilt
3шт.
27
8602917
SPRING
8шт.
28
8602918
RETAINER
Spring
8шт.
29
87311768
SPRING
1шт.
33
8602924
CARTRIDGE
M12 x 1,5
5шт.
34
87311766
PLUG
M12 x 1,5
2шт.
37
8602927
SEAL KIT
For Control Block And Valve Section
1шт.
37a
NSS
NOT SOLD SEPARAT
O-Ring; 7.5 x 1.78
2шт.
37b
NSS
NOT SOLD SEPARAT
O-Ring;18 x 2.5
2шт.
37c
NSS
NOT SOLD SEPARAT
O-Ring; 25 x 3.53
2шт.
37d
NSS
NOT SOLD SEPARAT
O-Ring; 32.92 x 3.53
4шт.
37e
NSS
NOT SOLD SEPARAT
O-Ring; 40.94 x 2.62
6шт.
37f
NSS
NOT SOLD SEPARAT
O-Ring; 28.24 x 2.62
1шт.
37g
NSS
NOT SOLD SEPARAT
O-Ring; 23.47 x 2.62
2шт.
37h
NSS
NOT SOLD SEPARAT
O-Ring; 15.54 x 2.62
10шт.
Выбрано товаров: 25
