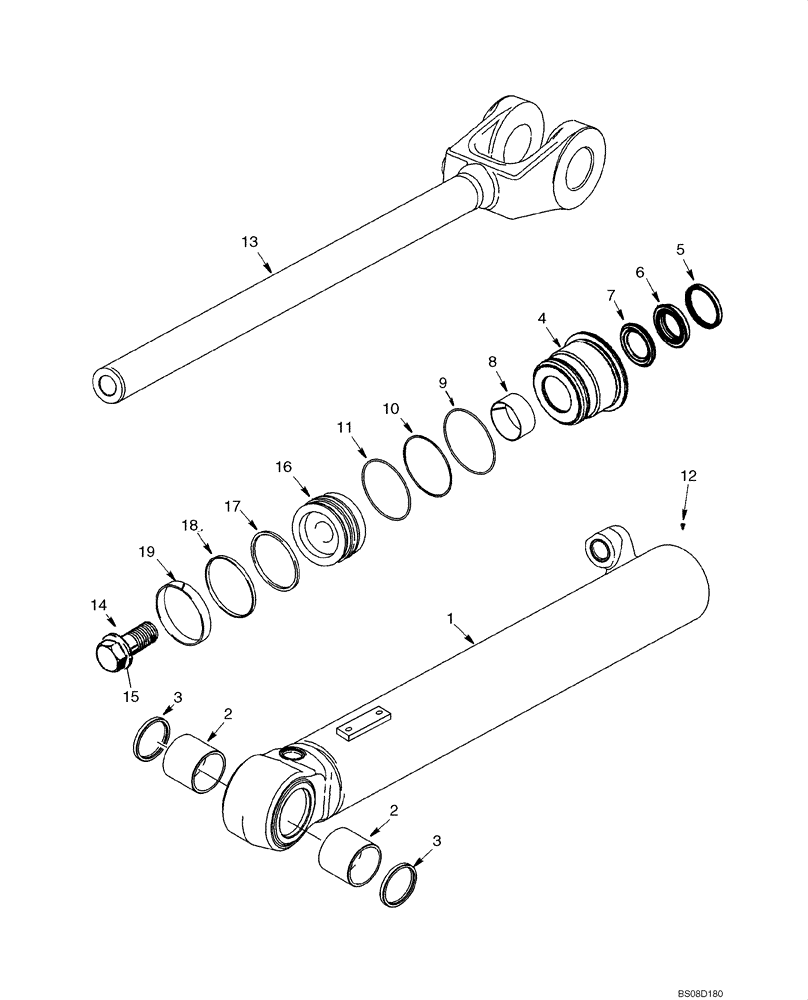

Запчасти Case 821E (08-25) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

87337177

CYLINDER ASSY.

Lift, 133.2 ID x 845.7 mm Stroke; Incl. Refs. 1 - 19

2шт.

87360952R

REMAN-HYD CYLINDER

821E, TIER 3 (8/06-)

2шт.

87360952C

CORE-HYD CYLINDER

Return Number

1шт.

87530718

SEAL KIT

Lift Cylinder; Incl. Refs. 5 - 11, 17 - 19

1шт.

1

87308529

HYD CYL SLEEVE

Tube Assembly; Incl. Ref. 2

1шт.

2

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

Replaces 446330A1

2шт.

3

365523A1

WIPER SEAL

2шт.

87308538

GLAND

ASSY., Incl. Refs. 4 - 11

1шт.

4

87308539

GLAND

1шт.

5

D95148

WIPER SEAL

1шт.

1542881C1

SEAL KIT

Rod and Buffer; Incl. Refs. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

8

336042A1

BUSHING

1шт.

9

238-5252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

1шт.

10

380621A1

BACK-UP RING

1шт.

11

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

12

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

13

87308533

ROD ASSY.

1шт.

14

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER

1шт.

87530716

PISTON ASSY

Incl. Refs. 16 - 19

1шт.

16

87530711

PISTON

1шт.

17

87530710

SEAL,Square, 6.86mm Thk x 113.14mm ID

Loader

1шт.

18

87530709

SEAL,127.44mm ID x 134.9mm OD x 9.32mm Thk

Piston

1шт.

19

444640A1

WEAR RING,Split, 127.05mm ID x 133.4mm OD x 19.05mm Thk

1шт.
