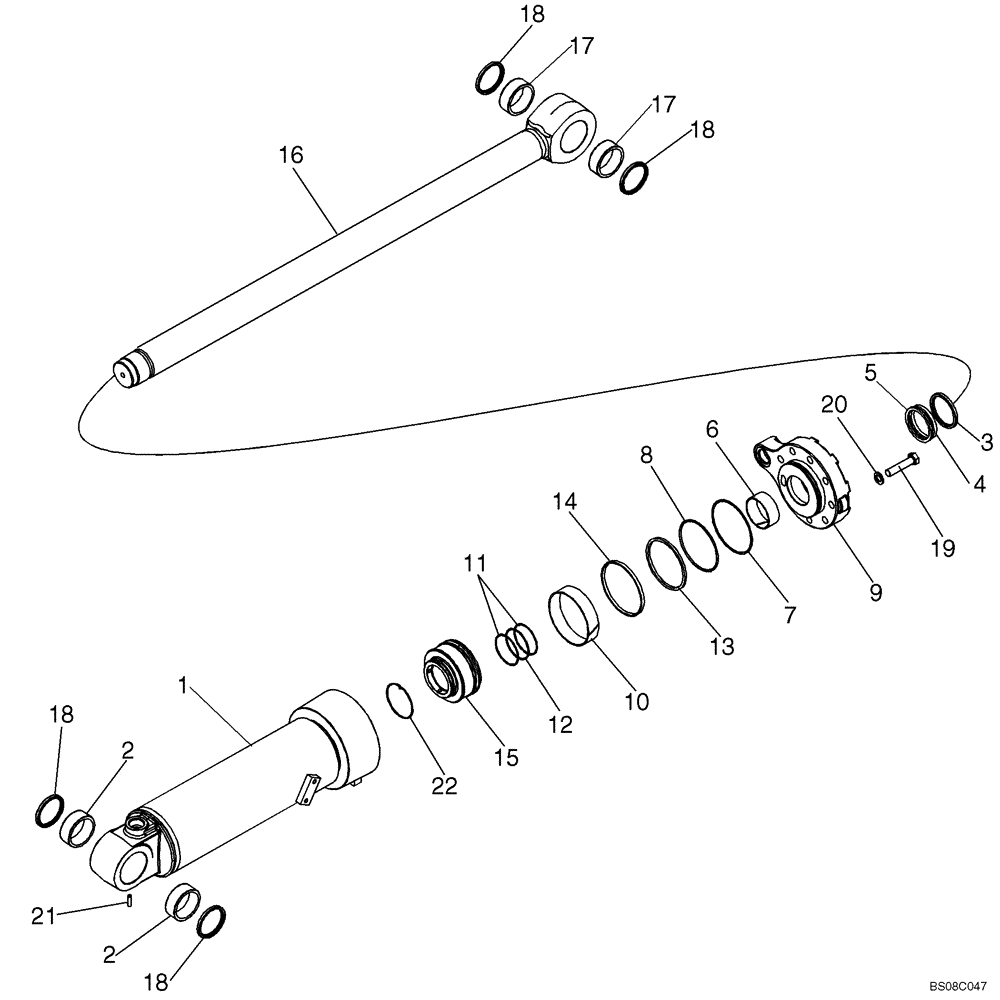

Запчасти Case 821E (08-24A) - CYLINDER ASSY - LOADER BUCKET (XR LOADER) (08) - HYDRAULICS

87696084

CYLINDER

ASSY, XR Loader Bucket Tilt; 165.11 ID x 599.6 mm strk; Incl. Refs. 1 - 22

1шт.

87696084R

REMAN-HYD CYLINDER

821E TIER 3 (8/06-)

1шт.

87696084C

CORE-HYD CYLINDER

Return Nmber

1шт.

87529743

SEAL KIT

Incl. Refs. 3 - 8, 10 - 14, 18

1шт.

1

87309045

BARREL,165.10 mm ID x 854.10 mm L

Cylinder; Incl. Ref. 2

1шт.

2

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

2шт.

NSS

NOT SOLD SEPARAT

GLAND, Assembly; Incl. Refs. 3 - 9; Order Component Parts

1шт.

3

S92653

WIPER

88.9 mm ID

1шт.

1542882C1

STRIPPER PACKAGE

Rod and Buffer Seals; Incl. Refs. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

6

G110677

HYD CYL SLEEVE

1шт.

7

G110421

BACK-UP RING,151.81mm ID x 160.95mm OD x 1.9mm Thk

1шт.

8

238-5360

O-RING,0.21" Thk x 5.85" ID, -360, Cl 5, 75 Duro

1шт.

9

87309056

GLAND

1шт.

87529740

PISTON ASSY

Incl. Refs. 10 - 15

1шт.

10

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

Backup

2шт.

12

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

13

87399718

SEALING RING,Square, 6.86mm Thk x 145.16mm ID

Ring

1шт.

14

87399594

SEAL,159.39mm ID x 166.85mm OD x 9.32mm Thk

Piston

1шт.

15

87309996

PISTON

1шт.

16

87696079

ROD

Incl. Ref. 17

1шт.

17

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

2шт.

18

365523A1

WIPER SEAL

4шт.

19

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

9шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

9шт.

21

G106602

LOCK PIN

Locking

1шт.

22

1980390C1

RING, SNAP

RING SNAP

1шт.
